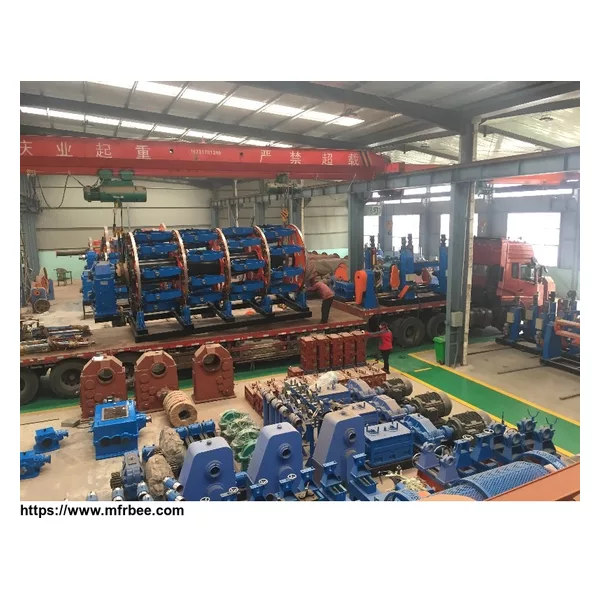

steel wire armouring machine steel wire armored equipment
Product Quick Detail
- FOB Price
- USD $30,000.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
1.Application
This series machine is use for shielding and armoring the power cable, rubber cable, and control cable.and also used for making large steel wire ropes.
2 Line Configuration
2.1) Pay-off stand
2.2) Wire guiding stand
2.3) Stranding cage
2.4) Closing die holder
2.5) Compacting device (selectable)
2.6) Non-metal taping device (selectable)
2.7) Metal taping device (selectable)
2.8) Length counter
2.9) Dual wheel capstan
2.10) Take-up
2.11) Mechanical transmission system (selectable)
2.12) Electric control system
2.13) Safety protection system
3. Technical
| Specification | 400/500/600/800/1000 |
| Dia. of wire( mm) | 1.0-4.0 |
| Armouring Dia(mm) | 130 |
| Rotation Speed(r/min) | 22-53 |
| Armouring Pitch(mm) | 106-1570 |
| TapingSpeed(r/min) | 185-416 |
| Taping Pitch(mm) | 9.7-146 |
Rigid Type: 24+24,24+24+24, 36+36, 42+42, 48+48
Planetary Type: 24+24, 24+30, 30+30, 30+36, 36+36, 36+36+36, 48+48, 72+72
Copper tape/copper wire screening machine
Steel tape/steel wire armoring machine
Main Features
1 The main gearbox and traction gearbox with Hardened reducer gear grinding process, low noise, long service life and low maintenance cost.
2 The gear box with auxiliary roller support mechanism, high speed, good rigidity.
3 In the gearbox on the handle to facilitate the realization of the right and left stranded and neutral.
- Country: China (Mainland)
- Business Type: cable stranding machine
- Market:GLOBAL MARKET
- Founded Year:2020
- Address:YANGMING INDUSTRY ZONE, YUYAO,ZHEJIANG ,CHINA
- Contact:Max Xu
