Model | JPD-2500 | JPD-3150 |
Take-up bobbin | PN2500 | PN3150 |
OD of laid-up cable | 120 | 130 |
lay up pitch | 111-9298 | |
Metal/non-metal taping device | Rotation speed(r/min) | 132-478 |
Pitch(mm) | 19-250 | |
Belt Width(mm) | 20-60 | |
Rotation speed(r/min) | 30 | 21 |
Linear speed of production(m/min) | 50 | 9.1-33 |
1.Application This series machine is use for shielding and armoring the power cable, rubber cable, and control cable.and also used for making large steel wire ropes. 2 Line Configuration 2.1) Pay-off stand 2.2) Wire guiding stand 2.3) Stranding cage 2.4) Closing die holder 2.5) ...
roduct Description Application: The high speed machines mainly used for stranding copper wire, aluminum wire, steel wire, ACSR and wire rope. Accompanied with taping head, it can used for insulation cores and some control cable stranding process. Component: Central pay-off, ...
1.34 years experience on cable/wire manufacture equipment 2.Industrial chain advantage:Located in Hebei province in Huabei area,one of the most important heavy industry belt of China,HongQi`s production get: --better quality --less cost 3.As both manufacture and trader,we can ...

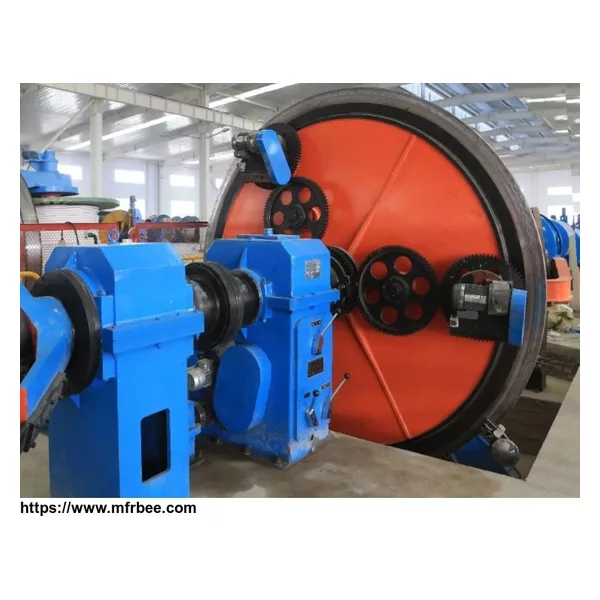

he machine is used for single-layer steel armoring or copper wire screening of cables, as well as twisting Al and copper wires, stranding control cables, rubber and insulated cables, also metal-taping function. Main Features 1.The main shaft is made of a seamless steel tube, ...
Technical Parameter Description 315mm 400mm/12+18+24 400mm/36+36 500mm/48+48 Single wire Dia. (mm) Φ0.8-Φ1.2 Φ0.8-Φ2.0 Φ0.8-Φ3.5 Stranding Dia. (mm) ≤Φ10 ≤Φ55 ≤Φ100 ≤Φ130 Cage rotation (rpm) 199.4 118 44 38 Stranding pitch (mm) 100-300 63-1067 88-1499 116-2019 ...
1.Application This series machine is use for shielding and armoring the power cable, rubber cable, and control cable.and also used for making large steel wire ropes. 2 Line Configuration 2.1) Pay-off stand 2.2) Wire guiding stand 2.3) Stranding cage 2.4) Closing die holder 2.5) ...
