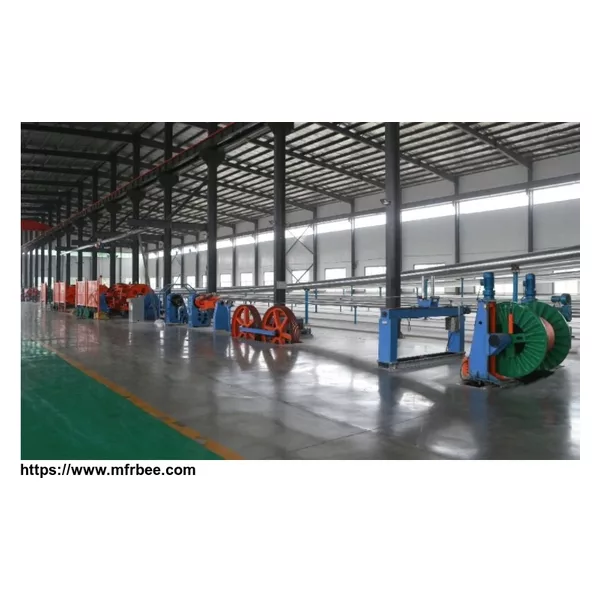

Wire Cable Making Machine , Planetary Stranding Machine Low Noise
Product Quick Detail
- FOB Price
- USD $30,000.00 / Piece
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
| Specification | JPD－2500 | JPD－3150 |
| Size of take-up | 2500 | 3150 |
| Max dia. of output (mm) | 120 | 130 |
| Cable pitch (mm) | 111－9298 | |
| Strander speed (R/min) | 30 | 21 |
| Output speed (m/min) | 50 | 42 |
Features
1.It adopts new type drum twisting structure, then it is highly efficient and convenient.
2.This machine includes tape lapper, pedrail driven and rotary take-up. They are operated with other machines, so its pitch is exact. The pay-off adopts single motor gyration which can keep rotating with the rotary take-up or remains working by itself.
3.The pay-off is passive style, and the tensile force is adjustable.
4.The take-up adopts up-wheel structure to strengthen the rigid, steady and reliability.
5.It is equipped with multi-safeguards which can be manipulated easily and reliably.
- Country: China (Mainland)
- Business Type: cable stranding machine
- Market:GLOBAL MARKET
- Founded Year:2020
- Address:YANGMING INDUSTRY ZONE, YUYAO,ZHEJIANG ,CHINA
- Contact:Max Xu
