Digital Signal Output Pressure Sensor (DO-M01)

Minimum Order
1
Place Of Origin
China (Mainland)
Packaging
plactic bag
Delivery
20 Days

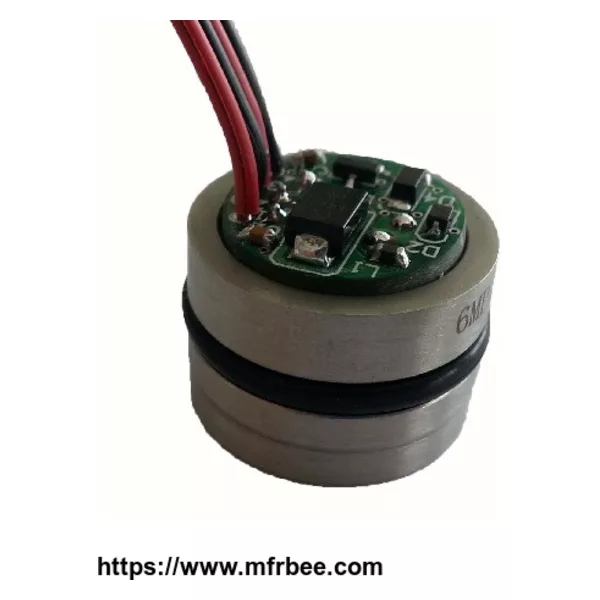

The DO-M01 digital signal output pressure sensor is small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. It has 14 bit digital output resolution, wild temperature operating and compensated range. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the inside sensing element.

Feature

l 316L stainless steel diaphragm type pressure sensor

l Temperature compensation and error adjustment by special signal conditioning chip

l Digital signal output, 1-wire bus communication protocol

l EMC standard designed circuit, anti-radio frequency and anti-electromagnetic interference

l Anti-Electrical surge designed to protect electronic components

l Wild power supply range, working condition under 4V - 36VDC


Applications

l Level controls

l Tank level measurement

l Corrosive fluids and gas measurement systems

l Sealed system

l Manifold pressure measurement

l Barometric pressure measurement

l Submersible depth monitoring


Performance Specification
Nominal range 0 - 0.6MPa to 0 - 60MPa
Pressure reference Gauge pressure & absolute pressure
Overload 1.5 times of nominal scale
Accuracy ±0.25%F.S
Total error band ±0.5%F.S; ±1%F.S
Compensated temperature -25ºC - +125ºC
Power supply 4 - 30VDC
Supply current 4mA
Output type One wire; RS232\RS485\SPI; analog voltage signal
Resolution 14 bit
