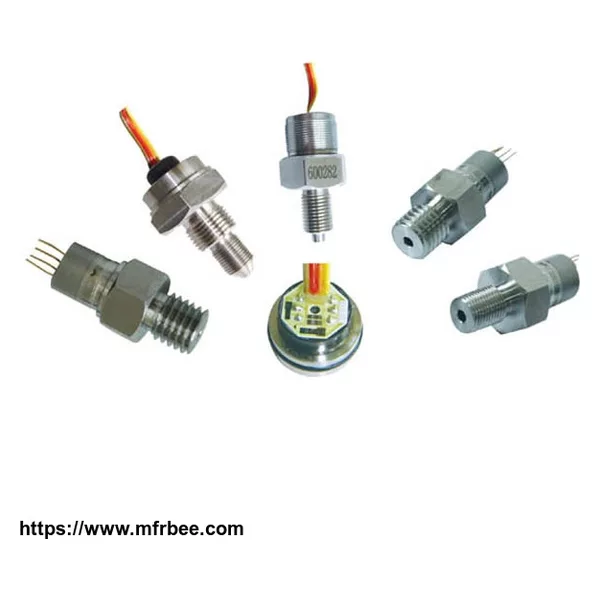

Pressure Sensor with Welded Housing (HB2135)
Product sourcing details
- Place of Origin
- China (Mainland)
- FOB Price
- USD $25.00 / Piece
- Packaging
- plactic bag
Supplier: SAIS CO.,LTD.
Purchasing information
- Minimum order
- 1
- Lead time
- 25 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
High precision pressure transducer, aslo have flush diaphragm structure.
Measuring ranges from 0-0.035 - 100Mpa
Piezoresistive diffusion silicon pressure sensor
Excellent accuracy and long term stability
316L package assemble conveniently
Measuring ranges from 0-0.035 - 100Mpa
Piezoresistive diffusion silicon pressure sensor
Excellent accuracy and long term stability
316L package assemble conveniently
The sneor can be used for a wide range of applications in process control, automatic machinery and hydraulic or pneumatic system design.
01
| Nominal Scale | 35KPa, 100PKa, 250PKa, 600KPa, 1MPa, 1.6Mpa, 2.5MPa, 6MPa, 10MPa, 25MPa, 40MPa, 60MPa | |
| 02 | Overload Capacity | 1.5 times scale |
| 03 | Zero Output | ±1mV |
| 04 | Span Output | ≥50mV |
| 05 | Accuracy | ±0.1%F.S., ±0.25%F.S., ±0.5%F.S. |
| 06 | Power Supply | 1 mADC (typical) , 5V (optional) |
| 07 | Insulation Resistance | >200MΩ(100VDC) |
| 08 | Bridge Resistance | 5(1±20%)KΩ |
| 09 | Operating Temperature | -40ºC~+100ºC,0~70ºC(Typical) |
| 10 | Compensated Temperature | -30~+100ºC,-10~+50ºC,0~70ºC |
| 11 | Zero Temperature Coefficient | ±0.02%F.S./ºC(Typical) |
| 12 | Sensitivity Temperature Coefficient | ±0.02%F.S./ºC(Typical) |
| 13 | Long Term Stability | ±0.2%F.S./ Y |
