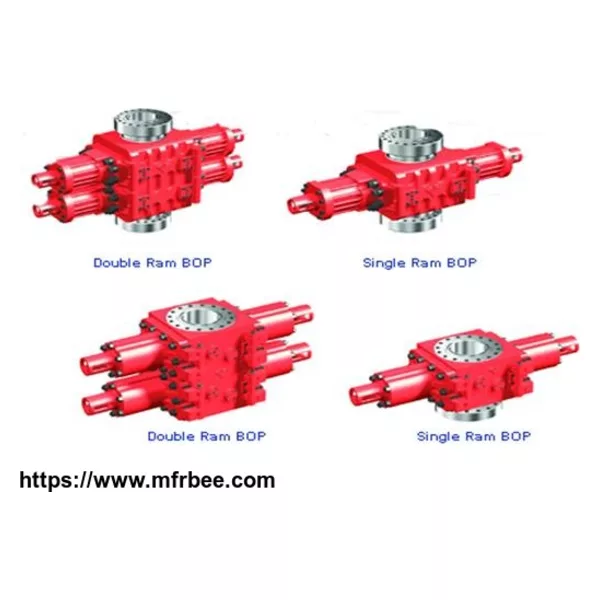

Pipe ram BOP

FOB Price
USD $15,000.00 / Piece
Place Of Origin
Shanghai
Minimum Order
1
Packaging
1
Delivery
30 Days

Ram BOP is key component of well control device and mainly used to control wellhead pressure during well drilling, well repair, well test and other task, to prevent blowout accident effectively and realize civilized and safe construction. Could complete following task:

1.When there is pipe column in well, it could close annular space between casing and pipe column with corresponding pipe ram.

2.When there is no pipe column in well, it could close wellhead totally with full seal ram.

3.Under capping operation, mud circulated, throttle and open the well for gushing, well control and well washing, and other special task by Flexible choke&kill hose conjoint with cross outlet.

4.Used together with flexible choke&kill hose,could control bottom hole pressure effectively to realize near balance pressure operation.

Specification

1.Standard:API16A
2.Bore size:7 1/16-21 1/4
3.Material :forged and casing
4.Pressure: 2000-10000 psi
