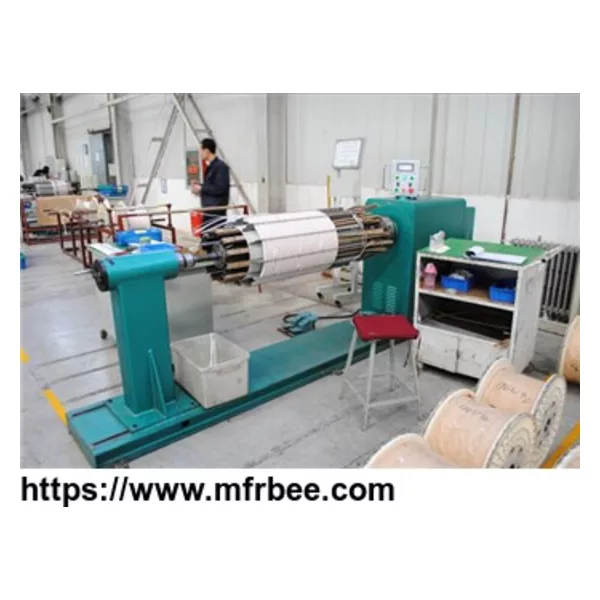

Transformer horizontal wire coil winding machines

Place Of Origin
China (Mainland)
Packaging
N/A
Delivery
N/A
It mainly consists of automatic dereeler, main winding machine and control system etc.
The wire coil winding machine is used to wind the wire or conductor on the iron core into a coil. This machine is special, it can realize to wind the wire or conductor on the iron core directly instead of on the winding mandrel.
