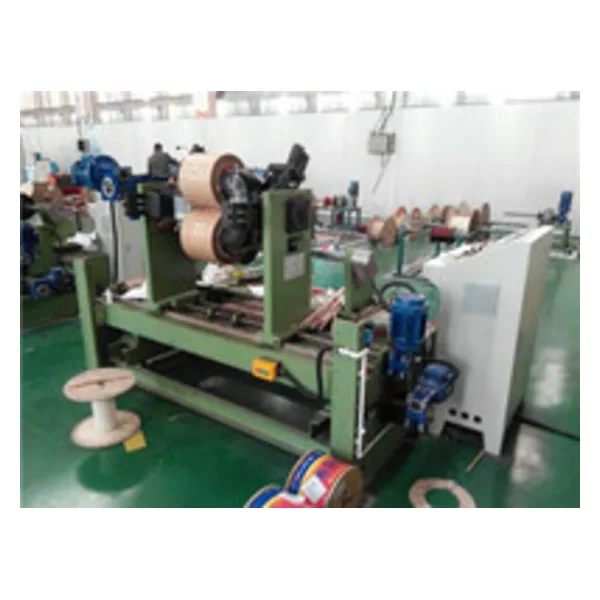

Automatic coil Winding Machine for transformers

Place Of Origin
China (Mainland)
Packaging
N/A
Delivery
N/A
1.Distance of disc. center from floor: 1210mm.
2.Disc. dia.: Ф560mm.
3.Max. pitch of strand: 600kg , max. torque (8r/m)6000Nm, min. wrest torque(40r/m)
2500Nm.
4.Max. load: 650kg.
5.4 kinds of speed range: 0-8, 0-16, 0-20, 0-40r/m.
6.Each speed starts from 0r/m steplessly torque increase and output power change with
frequency increase; main purpose of using Frequency Variable Inveter is to reduce the impact and
decrease the damage.
7.Having count function: max. recordable number of circles 999.
8.Motor power: 3kW, pricker slowdown, heavy double chain, 6 modulus, gear transmission,
capacity of frequency converter: min. 3kW.
  • Country: China (Mainland)
  • Business Type:
  • Market:Africa,Americas,Asia,Europe,European Union,Middle East,Oceania
  • Founded Year:1997
  • Address:
  • Contact:Steve Huang
more images of Automatic coil Winding Machine for transformers
