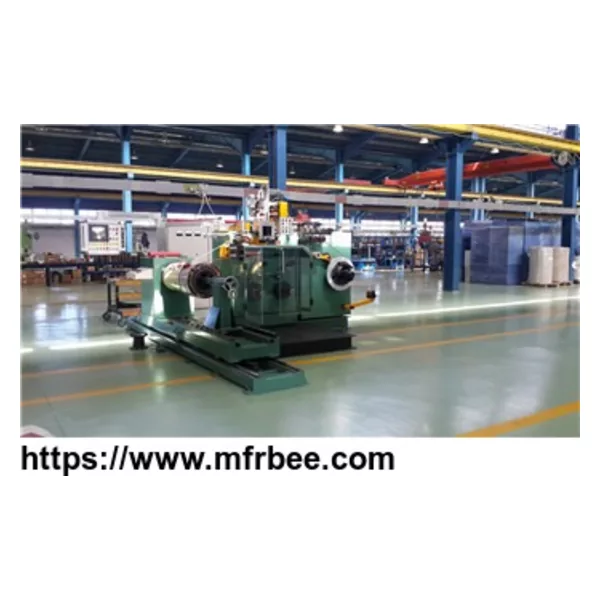

Transformer HV foil Winding Machine

Place Of Origin
China (Mainland)
Packaging
N/A
Delivery
N/A
The HV foil winding machine is used to wind high voltage coils for cast resin encapsulated transformers with Al or Cu foil strips. The individual Al or Cu foil discs are wound on the prepared casting mould separately and continuously via a sliding device.
Total turns, segment turns (stop position); deceleration turns and quantitative movement etc can be set via touch screen. It can realize laser locating original position and error correction. 100 sets of coil parameter can be called.
Welding unit is TIG welder.
Touch screen adopts Pro-face (10.4") from Japan.
PLC is Mistubishi make. Main operation panel adopts suspension type.
All motors are variable frequency or servo motors. Operation is reliable and safe.
