Standard Expanded Metal Mesh
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Minimum Order
- 10
- Packaging
- wooden box
- Delivery
- 15 Days
Specifications
Anping Tenglu Metal Wire Mesh Co.,LTD

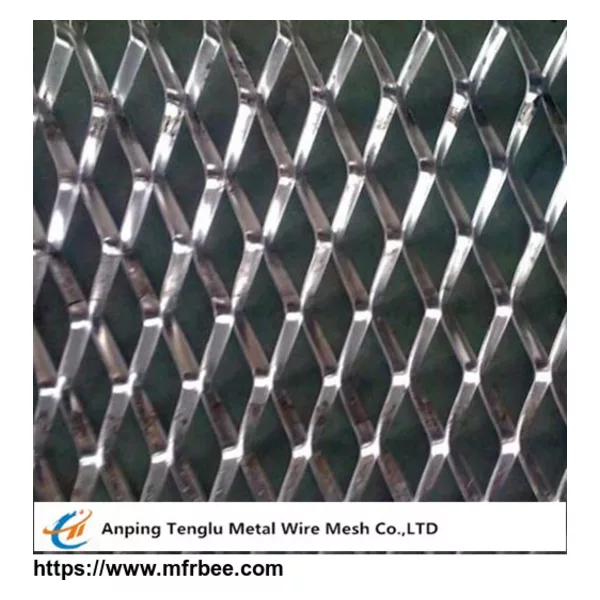

Standard Expanded Metal Mesh
•Product Description:
Standard expanded metal or regular expanded metal is also referred to as raised expanded metal.it is a finished product, which is simultaneously slit and stretched by a press to form a piece construction.
Expanded metal is die cut and stretched on an expanded metal press. The strands and bonds are set at a uniform angle to the plane of the expanded metal sheet, giving the product added strength and rigidity while maintaining skid resistance and maximum air circulation. The expanded metal diamond shaped openings have a slightly raised surface,unlike flattened expanded metal.
Standard Pattern: Rhombic Shaped Expanded Metal is the standard expanded metal products, also named diamond shaped. Standard expanded metal products can be made from a wide range of metal materials, widely used as protection fences, screens for window of cars, basket handrails, battery netting, satellite aerials, reinforcement materials, filtration materials and other uses.
Flattened Expanded Metal can serve as a kind of substitute for perforated metal materials, find most uses as fences, windows decoration, ventilation devices, shelves, racks, cages and some decoration purposes.
•Materials:carbon steel, stainless steel, galvanized steel, aluminum alloy and other metal alloys
•Feature:
Economical
Durable
Extremely versatile
Easy to install
Low resistance to wind loads
Easily cut to fit
Many material options
•Application:
Guards;Fencing;Panels;Grating;Stairs
Grilles;Screens;Greenhouses;Walkways
•Packaging :Wooden box
•Our Service:
Materials certification
Customized size
•Specifications:
| Style |
Design Sizes (Inches) |
Opening Size (Inches) |
Approx. Strand Size (Inches) |
Overall Thickness (Inches) |
Approx. No. Diamonds Per Ft. |
Open Area % |
||||
| SWD | LWD | SWO | LWO | Thickness | Width | SWD | LWD | |||
| 1/2" x #18 | .50 | 1.20 | .43 | .94 | .050 | .087 | .164 | 24 | 10 | 77 |
| 1/2" x #16 | .50 | 1.20 | .43 | .94 | .062 | .087 | .164 | 24 | 10 | 70 |
| 1/2" x #13 | .50 | 1.20 | .31 | .88 | .093 | .120 | .225 | 24 | 10 | 58 |
| 3/4" x #18 | .92 | 2.00 | .81 | 1.75 | .050 | .106 | .200 | 13 | 6 | 89 |
| 3/4" x #16 | .92 | 2.00 | .81 | 1.75 | .062 | .106 | .200 | 13 | 6 | 89 |
| 3/4" x #13 | .92 | 2.00 | .75 | 1.69 | .093 | .108 | .200 | 13 | 6 | 78 |
| 3/4" x #10 | .92 | 2.00 | .69 | 1.56 | .140 | .161 | .300 | 13 | 6 | 67 |
| 1-1/2" x #16 | 1.33 | 3.00 | 1.25 | 2.75 | .062 | .115 | .220 | 9 | 4 | 89 |
| 1-1/2" x #13 | 1.33 | 3.00 | 1.25 | 2.62 | .093 | .116 | .220 | 9 | 4 | 86 |
| 1-1/2" x #9 | 1.33 | 3.00 | 1.13 | 2.50 | .140 | .155 | .280 | 9 | 4 | 75 |
