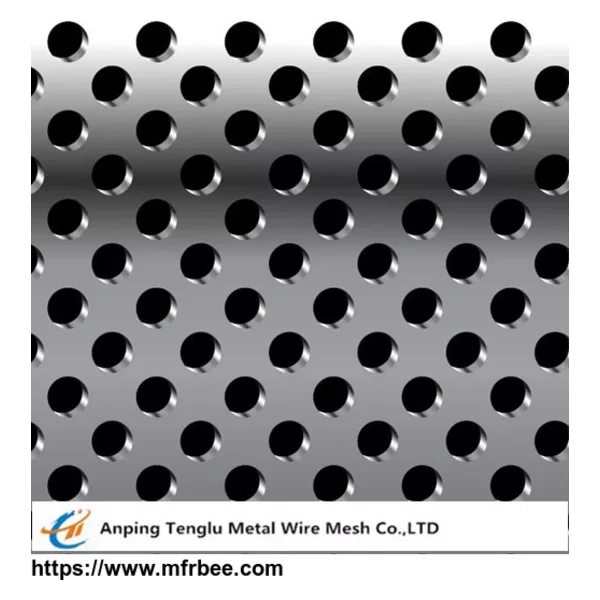

Stainless Steel Perforated Metal

Anping Tenglu Metal Wire Mesh Co.,LTD

•Product Description:

Stainless steel perforated metal,also know as punched metal sheet, and easy to be weld,cut,form the desired shape,which also hard,rust resistance and fire resistant. Because of those excellent characteristic,the perforated metal sheet have an excellent application in industrial, decoration ,filter,equipment guards,screens,ventilation,etc.

Stainless steel perforated metal is made from the sheets or coils of stainless steel,which are uniformly punched, have a variety of hole sizes,shapes and configuration. They have various of patterns by using the different molds.

Stainless steel perforated metal is a common material for functional and decorative structures. Its properties make it ideal for several reasons: notably, its resistance to corrosion and rust. It provides excellent corrosion resistance when left unfinished, or it can be finished with a variety of coatings to customize its appearance and further increase its longevity.

Stainless steel perforated metal is also highly regarded as a sustainable, re-usable resource. This material can be produced from recycled material and lasts for generations. Stainless steel perforated metal can also be completely recycled when it is deemed no longer useful for its existing purpose.

•Materials:

Stainless steel 201,304,304L,316,316L,410,etc.

•Application:

Stainless steel perforated sheets are perfect for ventilation, filter and sieve, protection and decoration.

•Packaging :Wooden box

•Our Service:

Materials certification

Customized size

•Specifications:

Round hole stainless steel perforated metal

Hole Diameter	Staggered Centers(inch)	Sheet Thickness	Open Area
Inch	MM	Inch	MM
0.033	0.84	0.055	0.0165-0.0198	0.40-0.50	28.00%
0.045	1.14	0.066	0.0165-0.0198	0.40-0.50	37.00%
1/16	1.59	3/32	0.026-0.053	0.66-1.35	41.00%
1/16	1.59	1/8	0.046-0.053	1.17-1.36	23.00%
3/32	2.38	9/64	0.054-0.065	1.37-1.65	40.30%
3/32	2.38	5/32	0.026-0.079	0.66-2.00	33.00%
3/32	2.38	1/4	0.033-0.053	0.84-1.35	12.50%
1/8	3.17	3/16	0.026-0.129	0.80-2.89	40.00%
1/8	3.17	7/32	0.026-0.039	0.66-0.99	29.60%
5/32	3.97	3/16	0.026-0.065	0.66-1.65	63.00%
3/16	4.76	1/4	0.026-0.079	0.66-2.00	50.00%
3/16	4.76	5/16	0.029-0.059	0.73, 1.50	32.00%
1/4	6.35	5/16	0.026-0.079	0.66-2.00	58.00%
1/4	6.35	3/8	0.026-0.065	0.66-1.65	40.00%
1/2	12.70	11/16	0.059, 0.121	1.50, 3.00	48.00%
1/4	6.35	1/2	0.121-0.236	3.00-6.00	22.67%
5/16	7.94	5/8	0.237-0.315	6.00-8.00	22.67%
