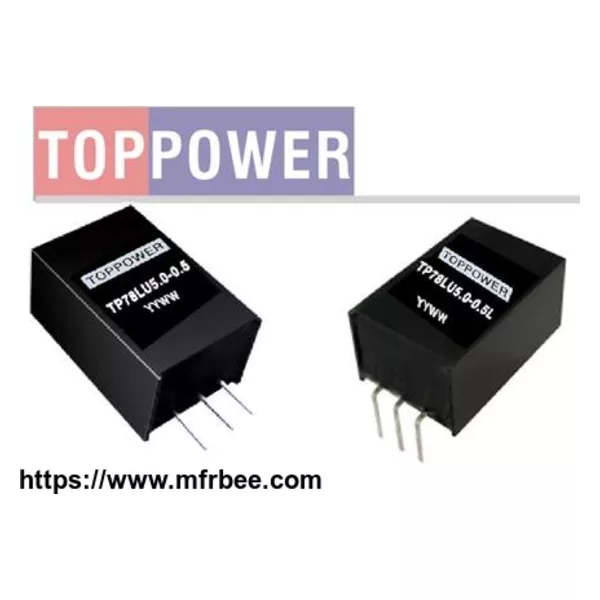

TP78LU3.3-0.5 non-isolated DC/DC converters
Product Quick Detail
- FOB Price
- USD $3.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 10
- Packaging
- tubes
- Delivery
- 15 Days
Specifications
ROHS Compliant Wide input non-isolated、regulated single output
Short circuit protection, Thermal shutdown Temperature range: -40ºC ~ +85ºC
SIP package, UL94-V0 Compliant No heat sink required
Part Number Input Voltage (VDC) Input Voltage (VDC)
Nominal Nominal Voltage（VDC) Current（mA) (Min)
（mA） Current（mA) (Max)
（mA）
TP78LU3.3-0.5 48
9.0~72.0
3.3 10 500
TP78LU5.0-0.5 48 9.0~72.0
5.0 10 500
TP78LU6.5-0.5 48 9.0~72.0
6.5 10 500
TP78LU9.0-0.5 48 14.0~72.0
9.0 10 500
TP78LU12-0.5 48 17.0~72.0
12 10 500
TP78LU15-0.5 48 20.0~72.0
15 10 500
TP78LU24-0.5 48 36.0~72.0
24 6 300
Parameter Conditions Min Typ. Max.
Output voltage accuracy 100% full load, input voltage range ±2 ±3
Line regulation Vin=min. to max, at full load ±0.4 ±1.0
Load regulation 10% to 100% load ±0.3 ±0.6
Ripple & Noise 20MHz bandwidth, 10% to 100% load 20 60
Short circuit input power consumption Nominal input voltage 0.72 1.2
