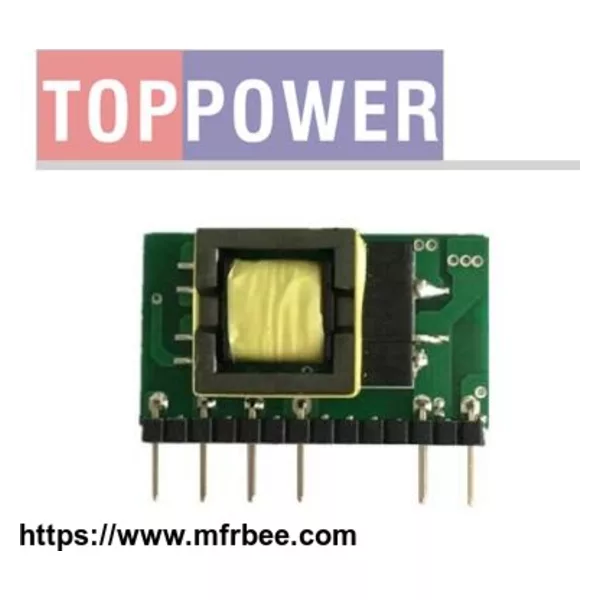

open frame AC/DC switching power supply, TP05AL series
Product sourcing details
- FOB Price
- USD $3.00 / Piece
- Place of Origin
- China
- Packaging
- box
Supplier: Guangzhou Top Power Electronics Technology Co., Ltd
Purchasing information
- Minimum order
- 10000
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
TP05AL series is an economical open frame AC/DC switching power supply,The rated output power is 5W
with wide input voltage range, for both AC input and DC input application. High reliability, Low power consumption, safety isolation .Widely used in industrial control and electrical instrumentation, smart home,etc.
SELECTION GUIDE
( Typ.)
All specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified.
OUTPUT CHARACTERISTICS
INPUT CHARACTERISTICS
with wide input voltage range, for both AC input and DC input application. High reliability, Low power consumption, safety isolation .Widely used in industrial control and electrical instrumentation, smart home,etc.
Universal input voltage range Both for AC and DC input voltage Low Ripple &Noise
High efficiency, high power density, miniature dimensions Low power consumption≤50mW
Overheat protection ,Over current protection
International standard Footprint&Pinouts Industrial product design Operating temperature : -40℃ to 70℃
SELECTION GUIDE
Part Number Input Voltage Output Efficiency (Typ. )
% Ripple &Noise mVp-p
( Typ.)
Voltage （VAC) Voltag（VDC) Current（A）
Rated Range values
TP05AL220S03W 220(4:1) 85-305 3.3 1.00 67 50
TP05AL220S05W 220(4:1) 85-305 5 1.00 74 50
TP05AL220S09W 220(4:1) 85-305 9 0.55 76 50
TP05AL220S12W 220(4:1) 85-305 12 0.42 78 50
TP05AL220S15W 220(4:1) 85-305 15 0.33 80 50
TP05AL220S24W 220(4:1) 85-305 24 0.21 82 50
All specifications typical at TA=25°C, nominal input voltage and rated output current unless otherwise specified.
OUTPUT CHARACTERISTICS
Output Voltage accuracy (3.3Voutput) ±2.0%
Output Voltage accuracy (others) ±1.0%
Line regulation (3.3V output) ±1.0%
Line regulation (others) ±0.5%
Load regulation (3.3V output) ±1.5%
Load regulation (others) ±1.0%
Start rising time (Typ.) 10ms/230VAC
Output hold time (Typ.) 50ms/230VAC
INPUT CHARACTERISTICS
Input Voltage 85-305VAC
Nominal Input Voltage 100-240VAC
Input frequency 47 ~ 63Hz
Input Current ( Typ.) 120mA / 115VAC 60m A / 230VAC
Inrush current( Typ.) Cold start 40A / 230 VAC
Leakage current( Typ.)
PROTECTION CHARACTERISTICSOver-current protection 120--150% load, Automatic recovery after troubleshootingOver-voltage protection yes
ENVIRONMENT CHARACTERISTICSOperating temperature -40 ~ +70 ℃ (According to the output load derating curve)Operating humidity 85% .RH maxStorage temperature –40 ~ +85, 10 ~ 95% RHTemperature coefficient 0.03%/ (0~ 50℃ )Vibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axesCooling method Natural cooling
