TP20DC24S12W URB2412LD-20W 20W DCDC

FOB Price
USD $9.00 / Piece
Minimum Order
10000
Place Of Origin
China
Packaging
tubes
Delivery
15 Days

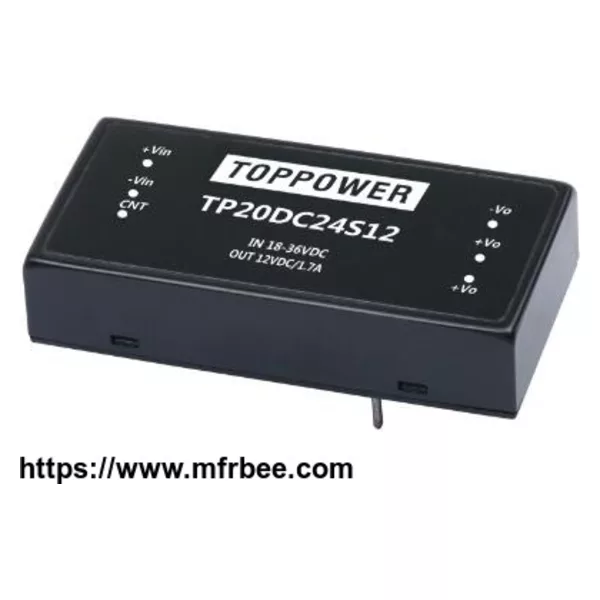

The rated output power of TP20DC/TP30DC converters is 20W,30W,the outline dimensions is "50.8*25.4*11.2", 2:1 ,4:1 input voltage range,the voltage range is 9.5V-18V,18V-36V,36V-72V, 9V-36V、18V-75V.The accuracy of the converter can reach ±1%,it can be widely used in telecommunications,railway transportation, Auto industrial,instrument and etc.

20-30W output power Long-term short circuit protection, Automatic recovery High power density, high conversion efficiency

Miniaturized package With remote control and output adjustment function RoHS compliant
MODEL SELECTION

Part Number Input Output Efficiency(Typ)
%

Voltage(VDC) Voltage(VDC) Current(A)

Rated Range values

TP20DC12S03 12(2:1) 9.5-18 3.3 6 90

TP20DC12S05 12(2:1) 9.5-18 5.05 4 90

TP20DC24S03 24(2:1) 18-36 3.3 6 90

TP20DC24S05 24(2:1) 18-36 5.05 4 90

TP20DC24S12 24(2:1) 18-36 12 1.7 90

TP20DC24S15 24(2:1) 18-36 15 1.3 90

TP20DC48S03 48(2:1) 36-75 3.3 6 90

TP20DC48S05 48(2:1) 36-75 5.05 4 90

TP20DC48S12 48(2:1) 36-75 12 1.7 90

TP20DC48S24 48(2:1) 36-75 24 0.83 90

TP20DC48S15 48(2:1) 36-75 15 1.3 90

TP20DC24S12W 24(4:1) 9-36 12 1.7 90

TP20DC48S18W 48(4:1) 18-75 18 1.1 90

TP30DC24S05 24(2:1) 18-36 5.05 6 90

TP30DC24S12 24(2:1) 18-36 12 2.5 90

TP30DC48S03 48(2:1) 36-75 3.3 6 90

TP30DC48S05 48(2:1) 36-75 5.05 6 90

TP30DC48S12 48(2:1) 36-75 12 2.5 90

TP30DC24S12W 24(4:1) 9-36 12 2.5 90
The Part No. with suffix “B”,please refer to B Package MECHANICAL DIMENSIONS,For example:TP20DC24S05B
