TPH0512S 2W DC/DC converters 5Vin +/-12Vout

TPH0512S 2W DC/DC converters 5Vin +/-12Vout
replcaement for
Murata NMH0512SC
RECOM RD-0512D
TRACO TMH 0512D

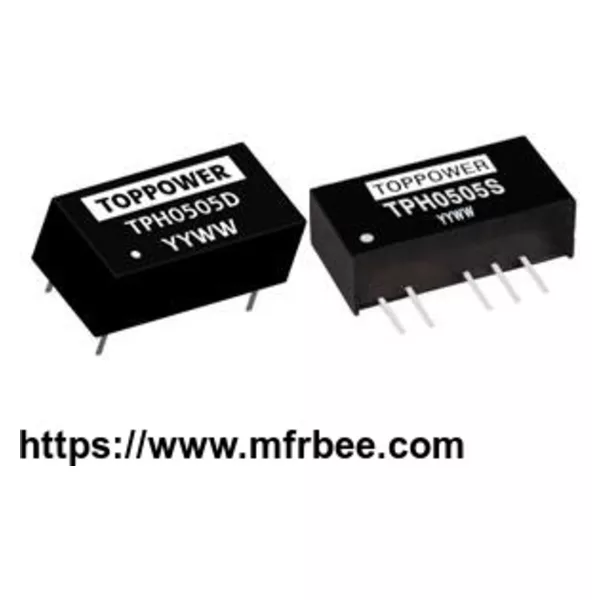

The TPH series are miniature, isolated 2W DC/DC converters in a SIP and DIP package. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it possible to offer a product with high performance at low cost. The series offers smaller size, improved efficiency, lower output ripple noise and 3KVDC isolation.

Part Number Nominal Input Voltage Output Voltage

V V

TPH0505D 5 ±5

TPH0509D 5 ±9

TPH0512D 5 ±12

TPH0515D 5 ±15

TPH0505S 5 ±5

TPH0509S 5 ±9

TPH0512S 5 ±12

TPH0515S 5 ±15

TPH1205D 12 ±5

TPH1209D 12 ±9

TPH1212D 12 ±12

TPH1215D 12 ±15

TPH1205S 12 ±5

TPH1209S 12 ±9

TPH1212S 12 ±12

TPH1215S 12 ±15

TPH2405D 24 ±5

TPH2409D 24 ±9

TPH2412D 24 ±12

TPH2415D 24 ±15

TPH2424D 24 ±24

TPH2405S 24 ±5

TPH2409S 24 ±9

TPH2412S 24 ±12

TPH2415S 24 ±15

TPH2424S 24 ±24

TPH4805D 48 ±5

TPH4809D 48 ±9

TPH4812D 48 ±12

TPH4815D 48 ±15

TPH4805S 48 ±5

TPH4809S 48 ±9

TPH4812S 48 ±12
TPH4815S

48 ±15
