TPH2415S replacement for RECOM RD-2415D
TPH2415S 24Vin +/-15Vout 2W DC/DC converters

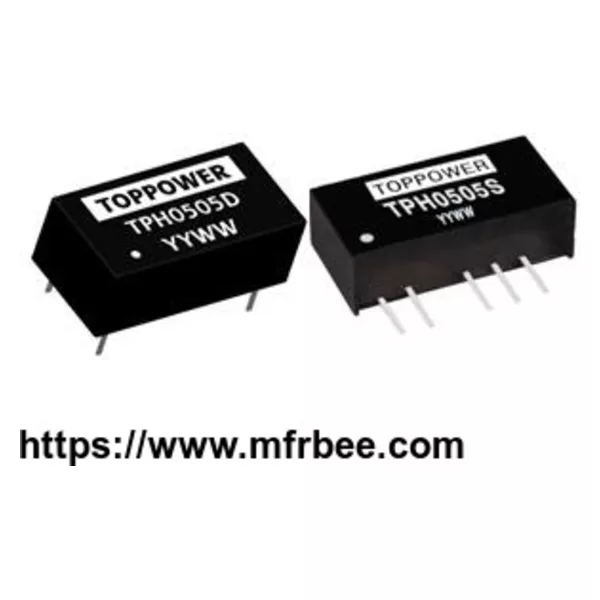

The TPH series are miniature, isolated 2W DC/DC converters in a SIP and DIP package. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it possible to offer a product with high performance at low cost. The series offers smaller size, improved efficiency, lower output ripple noise and 3KVDC isolation.

Part Number      Nominal Input Voltage   Output Voltage  Output Current  Efficiency      Package Style

V       V       mA      %

TPH0505D    5       ±5      ±200    80      DIP

TPH0509D  5       ±9      ±110    80      DIP

TPH0512D  5       ±12     ±84     81      DIP

TPH0515D  5       ±15     ±68     84      DIP

TPH0505S  5       ±5      ±200    80      SIP

TPH0509S  5       ±9      ±110    80      SIP

TPH0512S  5       ±12     ±84     82      SIP

TPH0515S  5       ±15     ±68     83      SIP

TPH1205D  12      ±5      ±200    80      DIP

TPH1209D  12      ±9      ±110    83      DIP

TPH1212D  12      ±12     ±84     84      DIP

TPH1215D  12      ±15     ±68     86      DIP

TPH1205S  12      ±5      ±200    80      SIP

TPH1209S  12      ±9      ±110    83      SIP

TPH1212S  12      ±12     ±84     84      SIP

TPH1215S  12      ±15     ±68     86      SIP

TPH2405D  24      ±5      ±200    80      DIP

TPH2409D  24      ±9      ±110    85      DIP

TPH2412D  24      ±12     ±84     86      DIP

TPH2415D  24      ±15     ±68     86      DIP

TPH2424D  24      ±24     ±42     85      DIP

TPH2405S  24      ±5      ±200    82      SIP

TPH2409S  24      ±9      ±110    85      SIP

TPH2412S  24      ±12     ±84     85      SIP

TPH2415S  24      ±15     ±68     85      SIP

TPH2424S  24      ±24     ±42     85      SIP

TPH4805D  48      ±5      ±200    82      DIP

TPH4809D  48      ±9      ±110    82      DIP

TPH4812D  48      ±12     ±84     85      DIP

TPH4815D  48      ±15     ±68     85      DIP

TPH4805S  48      ±5      ±200    82      SIP

TPH4809S  48      ±9      ±110    83      SIP

TPH4812S  48      ±12     ±84     85      SIP

TPH4815S

48      ±15     ±68     84      SIP

Add suffix “P” for continuous short circuit protection, for example TPH0505SP
