mud pump shear relief valve
Product Quick Detail
- FOB Price
- USD $80.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- as per requested
- Delivery
- 15 Days
Specifications

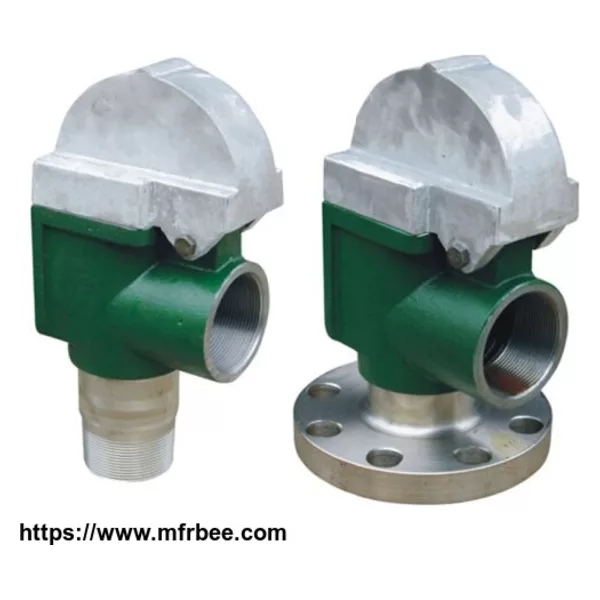

Shear pin safety valve is used at the discharge part of the mud pump.JA-3 shear pin safety valve changes the discharging pressure by changing the position of the shear pin ,which is operation easy and work reliable.
Shear pin safety valve is used at the discharge part of the mud pump.JA-3 shear pin safety valve changes the discharging pressure by changing the position of the shear pin ,which is operation easy and work reliable.
shear relief valve is used for high pressure drilling rig operation and other medium (water or oil) with high pressure circuit system. To compare with spring type or diaphragm type of relief
valve it has the following features:
1. It can be opened , closed and Reset simply; Opening and shutting neatly
2. Pressured piston area is small;
3. Be interchangeable and easy to be connected with other mud pump.
4. Safety Valve may use for multifold mud pumps.
5. flange / screw thread connection
6. Max pressure: 35Mpa
The ranks of safe pressure:
| Rank unit | 1 | 2 | 3 | 4 | 5 |
| Mpa | 18.6 | 22.5 | 26.5 | 30.4 | 34.3 |
| Kgf/cm2 | 190 | 230 | 270 | 310 | 350 |
