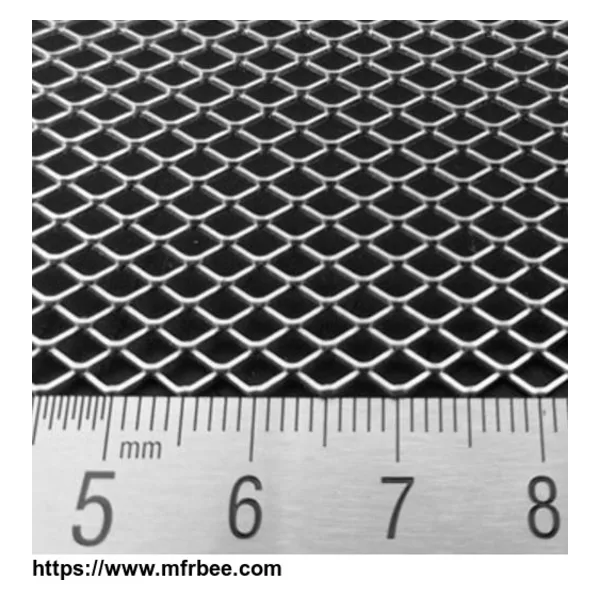

Titanium Expanded Metal Mesh

•Product Description:

Titanium expanded metal,the most versatile and economical expanded metal mesh product,is made from the sheets or coils of mild steel,galvanized steel,stainless steel,aluminum,which are uniformly slit and stretched, forming a diamond pattern of openings in the finished sheet. Expanded metal has various of patterns by using the different molds.

Titanium expanded mesh has the following features:

Lighter in weight;

High strength;

Good low temperature resistance;

Excellent corrosion resistance.

Titanium expanded metal is available in a variety of thickness and strand according to the applications and projects requirements. It is also available in a variety of surface, standard (raised) and flattened (smooth) surface.

•Titanium sheet type:TA1,TA2,TA3,TC4,GR1,GR2,GR5,etc

•Application:

Titanium expanded metal have a variety of applications in architectural,commercial,industrial and decoration.

Such as suspended ceiling,curtain wall cladding,interior decoration, security, ventilation, guards, window protection, screens, flooring, walkways, bearing grating,etc.

•Packaging :Wooden box

•Our Service:

Materials certification

Customized size

•Specifications:

Style	Strand Width(in.)	Sheet Sizes	Sizeof Bridges Center to Center (in.)Width Length	Strand Thickness (in.)	Gauge	Size of Opening (in.)	Percent Open Area
1/4 inch 1/4inch	.086 .080	4\'x8’ 4’x8\'	.25 1.018 .25 1.024	.029 .042	20 18	.094 x .688 .094 x .688	30 to 35 35 to 40
1/2 inch 1/2 inch 1/2 inch 1/2 inch	.080 .102 .096 .119	4\'x8\' 4\'x8\' 4’x8\' 4\'x8\'	.500 1.260 .500 1.260 .500 1.260 .500 1.245	.029 .039 .050 .070	20 18 16 13	.350 x 1.08 .302 x 1.05 .302 x 1.02 .300 x .950	74 to 79 58 to 63 60 to 65 50 to 55
3/4 inch 3/4 inch 3/4 inch	.110 .114 .137 .157	4\'x8\' &10\' 4\'x8\' 4\'x8\' &10\' 4\'x8\' &10\'	.923 2.098 .923 2.111 .923 2.078 .923 2.120	.048 .061 .070 .120	16 14 13 10	.750 x 1.781 .688 x 1.781 .688 x 1.781 .562 x 1.688	75 to 80 73 to 78 73 to 78 63 to 68
1 inch	.106	4\'x8\'	1 2.508	.048	16	.780 x 2.06	76 to 81
1.5 inch 1.5 inch 1.5 inch 1.5 inch 1.5 inch	.090 .127 .120 .130 .165	4’x 8\' 4\'x8\' 4\'x8\' 4\'x8\' 4’x8\' &10\'	1.33 3.12 1.33 3.146 1.33 3.105 1.33 3.115 1.33 3.207	.048 .048 .061 .070 .110	16 16 14 13 10	1.150 x 3.2 1.062 x 2.75 1.062 x 2.75 1.062 x 2.75 1 x 2.562	75 to 80 79 to 84 80 to 85 78 to 83 73 to 78
