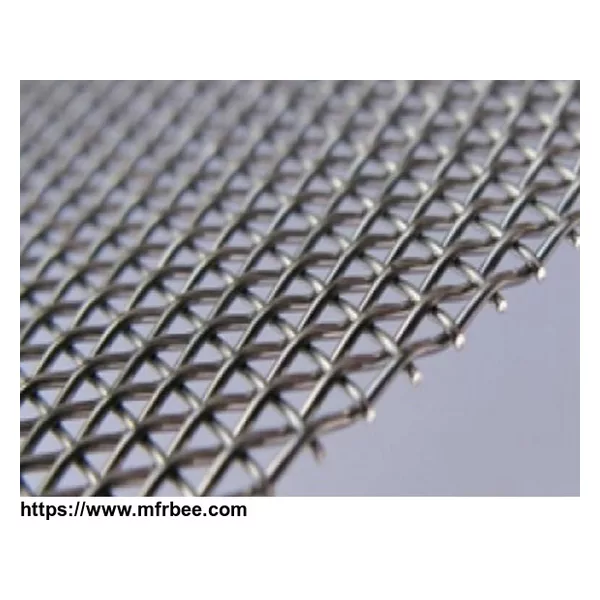

Nickel 200 Wire Mesh
Woven nickel mesh has plain weave, twill weave, Holland weave, twill Holland weave, reverse Holland weaving five methods.
The nickel net is mainly used for screening in acid and alkali environment and separating gas, liquid and other mediums.
Nickel 200 wire mesh features:
Excellent acid, alkali, chemicals corrosion resistance;
Superior thermal and electrical conductivity, magnetostrictive properties;
Abrasion and high temperature resistance;
Good ductility and strength.
Nickel 200 wire mesh applications:
Service as filter in chemical, mining, food, petroleum, machine industries;
Used for conductive or heating elements;
Play an important role in electrical, machine, salt refining, marine development, etc.
Specifications of Nickel 200 Wire Mesh | |||
Mesh | Wire Diameter |
Opening (mm) |
|
mm | inch | ||
2 mesh | 1.80 | 0.071 | 10.90 |
3 mesh | 1.60 | 0.063 | 6.866 |
4 mesh | 1.20 | 0.047 | 5.15 |
5 mesh | 0.91 | 0.036 | 4.17 |
6 mesh | 0.711 | 0.028 | 3.522 |
8 mesh | 0.610 | 0.024 | 2.565 |
10 mesh | 0.508 | 0.020 | 2.032 |
12 mesh | 0.457 | 0.018 | 1.660 |
14 mesh | 0.417 | 0.016 | 1.397 |
16 mesh | 0.345 | 0.014 | 1.243 |
18 mesh | 0.315 | 0.012 | 1.096 |
20 mesh | 0.315 | 0.0124 | 0.955 |
22 mesh | 0.315 | 0.0124 | 0.840 |
24 mesh | 0.315 | 0.0124 | 0.743 |
26 mesh | 0.295 | 0.0116 | 0.682 |
28 mesh | 0.295 | 0.0116 | 0.612 |
30 mesh | 0.274 | 0.011 | 0.573 |
32 mesh | 0.254 | 0.010 | 0.540 |
34 mesh | 0.234 | 0.0092 | 0.513 |
36 mesh | 0.234 | 0.0092 | 0.472 |
38 mesh | 0.213 | 0.0084 | 0.455 |
40 mesh | 0.193 | 0.0076 | 0.442 |
42 mesh | 0.193 | 0.0076 | 0.412 |
44 mesh | 0.173 | 0.0068 | 0.404 |
46 mesh | 0.173 | 0.0068 | 0.379 |
48 mesh | 0.173 | 0.0068 | 0.356 |
50 mesh | 0.173 | 0.0068 | 0.335 |
60 mesh | 0.173 | 0.0068 | 0.250 |
70 mesh | 0.132 | 0.0052 | 0.231 |
80 mesh | 0.122 | 0.0048 | 0.196 |
90 mesh | 0.112 | 0.0044 | 0.170 |
100 mesh | 0.012 | 0.004 | 0.152 |
120 mesh | 0.081 | 0.0032 | 0.131 |
140 mesh | 0.061 | 0.0024 | 0.120 |
150 mesh | 0.061 | 0.0024 | 0.108 |
160 mesh | 0.061 | 0.0024 | 0.098 |
180 mesh | 0.051 | 0.002 | 0.090 |
200 mesh | 0.051 | 0.002 | 0.076 |
220 mesh | 0.051 | 0.002 | 0.065 |
250 mesh | 0.041 | 0.0016 | 0.061 |
280 mesh | 0.035 | 0.0014 | 0.056 |
300 mesh | 0.031 | 0.0012 | 0.054 |
320 mesh | 0.031 | 0.0012 | 0.046 |
330 mesh | 0.031 | 0.0012 | 0.042 |
350 mesh | 0.031 | 0.0012 | 0.039 |
360 mesh | 0.025 | 0.00098 | 0.0385 |
400 mesh | 0.025 | 0.00098 | 0.0385 |
