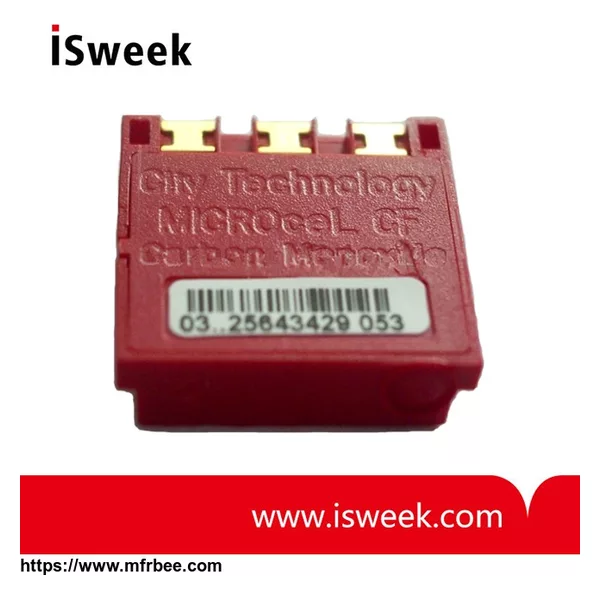

Microcel Cf Carbon Monoxide (co) Gas Sensor

Country: Hong Kong
Market: Europe
Founded Year: 2014
Contact: Rita yu

MICROceL CFCarbon Monoxide Sensor(CO sensor) Description
MICRO 3-electrode carbon monoxide sensor with inboard filter.

MICROceL CFCarbon Monoxide Sensor(CO sensor)Key Features & Benefits
• A robust carbon monoxide sensor suitable for portable life safety applications
• Extremely small size

MICROceL CF Carbon Monoxide Sensor(CO sensor)Technical Specifications

MEASUREMENT
Operating Principle	3-electrode electrochemical
Measurement Range	0-500 ppm CO
Maximum Overload	1500 ppm CO
Filter	To remove TLV levels of interfering gases
Sensitivity*	0.045 ± 0.01 µA/ppm
T50 Response Time	<10 Seconds at 20°C
Typical T90 Response Time	15 to 20 seconds
Baseline Offset (clean air)	-4 to +2 ppm CO equivalent
Maximum Zero Shift* (+20°C to +40°C)	2 ppm CO equivalent
Linearity	Linear up to 1500 ppm CO

ELECTRICAL
Recommended Load Resistor	10 Ω
Bias Voltage	Not Required

MECHANICAL
Weight	1.2 g
Housing Material	ABS
Orientation	Any

ENVIRONMENTAL
Operating Temperature Range	-40°C to +50°C
Recommended Storage Temp	0°C to 20°C
Operating Pressure Range	Atmospheric ± 10%
Operating Humidity Range	15 - 90% RH non-condensing

LIFETIME
Expected Operating Life	Two years in air
Long Term Output Drift	<5% signal loss per year
Storage Life	6 months in CTL container

* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.
