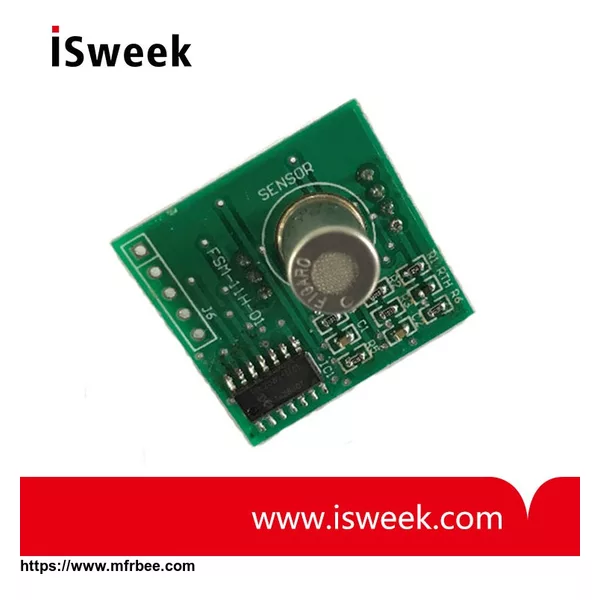

FSM-10H-01 Pre-calibrated Combustible Gas Sensor Module

Minimum Order
1
Brand Name
Figaro
Place Of Origin
Japan
Packaging
N/A
Delivery
15 Days
FSM-10H-01 Pre-calibrated Module for LPG Gas
FSM-10H-01 is Pre-calibrated Module for LPG gas alarm which applies TGS2610-D00 sensor together, it features durability and stability. The module outputs PWM signal which is proportional to LPG gas concentration (The module has a memory which is stored with factory calibration data), also is capable of detecting sensor wire breakage and short. The module can operate at wide temperature from -10~70°C.
Furthermore, the unit is less sensitivity to VOCs gas, it immunes poison by silicon compounds, it suits to work at rugged environment.

FSM-10H-01 Combustible Gas Sensor Module Features
• PWM, USART digital output proportional to gas concentration
• Maintain Free
• Compact size, low cost
• Meets RoHS requirement

FSM-10H-01 Combustible Gas Sensor Module Applications
• Detect flammable gas leakage
• Flammable gas leakage Detector
• Industrial detector

FSM-10H-01 Combustible Gas Sensor Module Specification
Product name
Combustible gas sensor module
Model No.
FSM-10H-01
Gas sensor
TGS2610-D00(Semiconductor)
Detection range
0 ~ 4,000ppm H2
(also can detect methane, iso-butane, and propane)
Error
± 300ppm
Response time (T90)
≤30S
Operating conditions
-10°C ~+70°C, 20~95%RH(No condensing)
Storage conditions
-10°C ~+80°C, 20~95%RH
Input voltage (VIN)
5.0±0.2V DC
Power consumption
≤1.5W
Weight
15g or less
Dimensions
26*27mm
