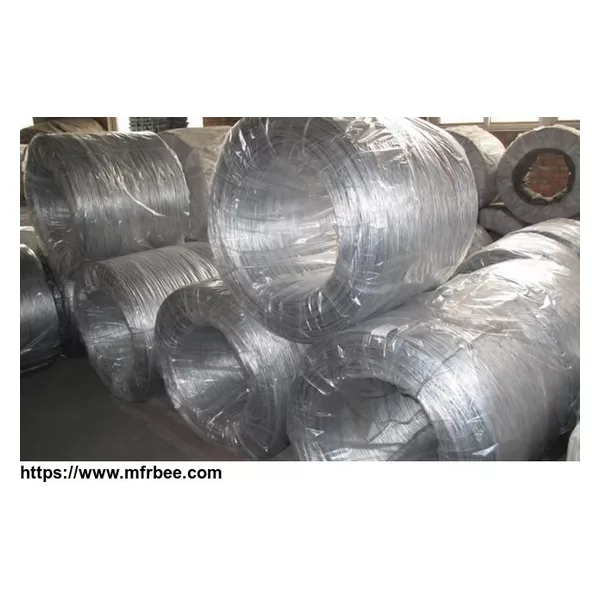

Electro galvanized iron wire

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Electro galvanized iron wire ranging from BWG8# to BWG16# is the mostly used for customers,size of electro galvanized wire0.70--1.30mm+/-0.01; We also offer thinner galvanized wire down to BWG5# or up to BWG28# upon customers specific order. Single coil package for electro galvanized iron wire can be as small as 10 kg and up to maximum 1000 kg per coil.

retensile strength300--490N/mm2;

elongation:min15%;

zinc coated10-15g/m2.

Electro Galvanized Iron Wire Processing & Features:

This kind of galvanized wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc.

Forms of Supply:

Electro galvanized iron wire can be supplied in the form of coil wire, spool wire or further processed into straightened cut wire or U type wire.

Electro galvanized iron wire applications:

Electro galvanized iron wire is mainly used in construction, express way fencing, binding of flowers and wire mesh weaving.

Electro Galvanized Iron Wire is also known as electric galvanized iron wire or galvanized steel wire. Our produces electric galvanized wire at diameter ranging from 0.14mm to 5.0mm, which can be supplied in the form of coils, spools, U type wire or straightened and cut into tie wire. Electric Galvanized Iron Wire we produce usually goes through standard processes under careful control from steel rod coil, wire drawing, annealing, rust removing, acid washing, boiling, drying, zinc feeding to wire coiling.

Wire Diameter of Electro Galvanized Iron Wire: 0.14mm - 5.0mm.

Zinc coating for Electro Galvanized Iron Wire: about 8gram to 12gram.

Production Process of Electro Galvanized Iron Wire:

Steel rod coil -- Wire Drawing -- Wire Annealing--Rust Removing-- Acid Washing-- Boiling-- Drying-- Zinc Feeding-- Wire Coiling.

Country: China (Mainland)
Business Type: Manufacturer
Market:Asia
Founded Year:
Address:Wire Mesh Development Zone, Raoyang, Hengshui, Hebei, China 053000.
Contact:bai yang
