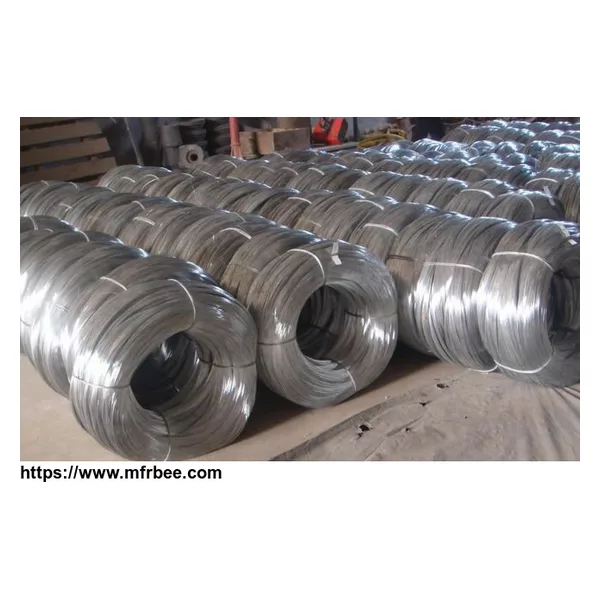

Hot Dip GI Wire

Minimum Order
1
Packaging
N/A
Delivery
15 Days
Our produces and exports big volume of galvanized iron wire (electric galvanized iron wire and hot-dipped galvanized wire) every year to the Middle-east countries.

Material: super carbon steel
Processing by drawing, hot-dip zinc-plating
Standard wire gauge from 8# to 24#
Thick zinc-coating layer
Super in corrosion resistance
Firm coating layer
Custom size available
Hot-Dip Galvanized Iron Wire Technical Information: Material: super carbon steel Processing by drawing, hot-dip zinc coating.
Hot-dip galvanized iron wire standard wire gauge: from 8# to 24#
Hot-dip galvanized wire property: Thick zinc-coating layer of hot-dipped galvanized iron wire offers super corrosion resistance with firm coating layer.
Custom size available.

Hot Dip Galvanized Wires 2.10mm, Bundled Wire
Zinc coating min - 200gm/m2
Breaking load of steel wire - 500kg
Length of each bundle -1250mtrs
Packing - plastic + pp bags + pallets
65-75 Ksi
500kgs/coil

HOT GI Wire Gauge : 24, Spool Wire:
Per Coil Weight : 25Kg/Coil
zinc content : 50g/sqm.
packing on spool.

Hot Dip GI Wire, Coiled Wire:
Zinc Coating : 270 g/m2
Tensile Strength : 1800 N/mm2
Packing : 500 kgs per Coil
End Use : Required for Dam Construction and Wire supposed to be used under Water.
Inspection : SGS of quality, quantity and stuffing of material at loading port on supplier cost.

  • Country: China (Mainland)
  • Business Type: Manufacturer
  • Market:Asia
  • Founded Year:
  • Address:Wire Mesh Development Zone, Raoyang, Hengshui, Hebei, China 053000.
  • Contact:bai yang
