1. Nominal pressure: 600 Tons pressure

2. Opening height Maximum height: 1500 mm

3. Working table size 2700*1400 mm

4. Wood veneer in feed direction: from 2700mm side

5. Hydraulic rams: Φ 280*1200mm 4 pieces ,Φ 120 mm 2 pieces

6. Place of the hydraulic rams: top placed

7. Stroke of hydraulic rams: 1200 mm

8. Hydraulic system: Automatic, Prefill valve 80, two-way manifold block

9. No load closing time: 40 seconds

10. Pressure of hydraulic system: 25 Mpa

11. Motor power: 11 KW

12. Pressure pump: 40ml/rev plunger high pressure pump

13. Top crossbeam, bottom crossbeam: 1000 mm, 1000 mm

14. Main frame steel thickness: 30 mm, 22 mm, 12 mm

15. Movable crossbeam size: 2800*1400*400 mm

16. Weight: 22,000 KG

17. Machine size: 3560*1400*4060 mm

18. Frame structure: double gantry frame

19. Wood veneer infeed and out feed: with automatic chain conveyor

Country: China (Mainland)
Market: Africa,Americas,Asia,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
Founded Year: 2016/09/07
Contact: Joe Zhao

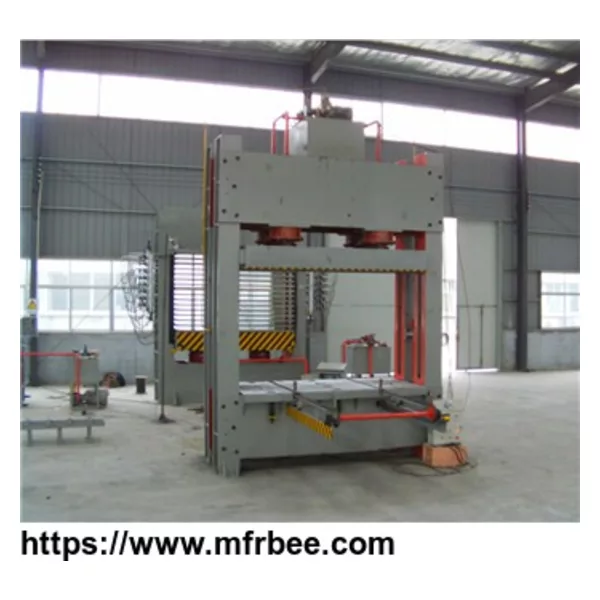

BY81-4*8/600SZ high quality plywood pre press machine with chain conveyor
