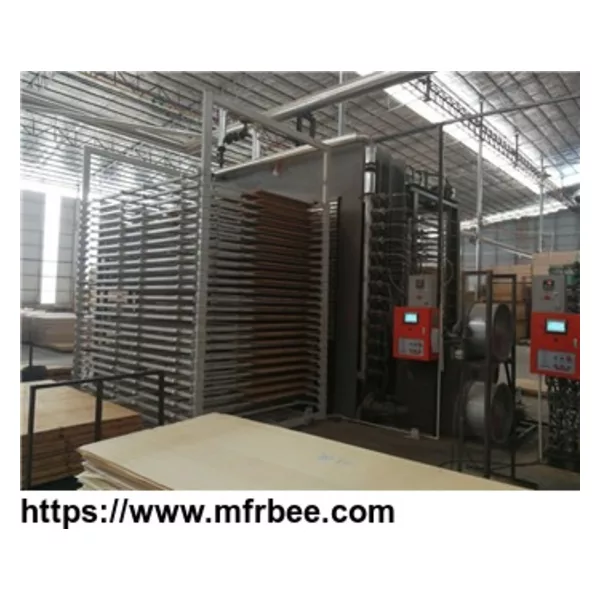

BY21-4*8/600-24 automatic loading and unloading plywood veneer hot press machine
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
1. Hot press plates size: 2700*1370*52 mm
2. Quantity of hot press plates: 25 sheets
3. Quantity of layers: 24 layers
4. Hydraulic Cylinders: 4 units, diameter 260 mm
5. Pressure Capacity: 600 Tons
6. Separation between layers: 70 mm
7. Stroke of Cylinder: 1680 mm
8. No-load closing time: 30 S
9. Hydraulic system: Automatic control
10. Hydraulic system limit pressure: 25MPa
11. Low pressure pump: 500 ml/ rev, 15 kw motor
12. High pressure pump: 10ml/rev , 5.5KW motor
13. Heating Medium: Steam or oils
14. Top, Bottom, Movable crossbeam: 1000 mm, 900 mm, 400 mm
15. Frame style: Fixed with screws , two group frames
16. Machine size: 3560*1370*6000 mm
