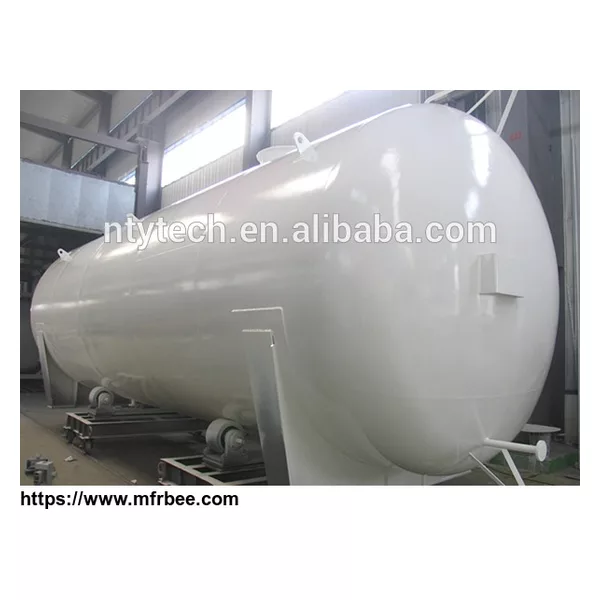

28M3 Capacity LCO2 Liquid Storage Tank Container
Product model | JXY9403GDY4-2.2 |
Loading medium | LCO2 |
Working pressure(MPa) | 2.2 |
Geometic capacity(M3) | 28.06 |
Valid capacity(M3) | 25.82 |
Tank material | 16MnDR |
Curb weight(KG) | 14000 |
Rated load(KG) | 26000 |
Gross weight(KG) | 40000 |
Outer dimension(L*W*H mm) | 12950*2498*3625 |
Insulation method | Foam Package |
We adopt advanced vacuum acquisition and maintenance technology to guarantee good insulation performance, long vacuum holding time and low maintenance cost.
External pipelines adopt modular design and prefabrication, which can be more compact and concise, and the user can get more reliable system, more convenient installation, maintenance and lower maintenance costs.
It passes CCS attestation and can meet international marine requirements with certificate issued by International Classification Society according to user’s demand.
