CNG Cylinder Type 3 Nominal Capacity 80L Used for Buses

Specification:

Volume Capacity: 80L

Outside diameter: 356mm

Wall thickness: 5.7mm

Working Pressure: 20MPa

Nominal length: 1053mm

Type III CNG cylinder

*fully wrapped

*carbon fiber reinforced

*aluminum lined

*composite material

Our factory operates one of the biggest, most-advanced facilities for designing, testing and manufacturing aluminum liner and fully-wrapped composite CNG cylinder (type III) for vehicle, moreover, we specially manufactured small volume cylinders for vehicles with small space, such as two-wheelers, tricycles, motorcycles etc.. The cylinder has been now applied in vehicle with its characteristics of higher pressure, lighter weight, safer performance, stronger environmental adaptation capability and better heat resistance.

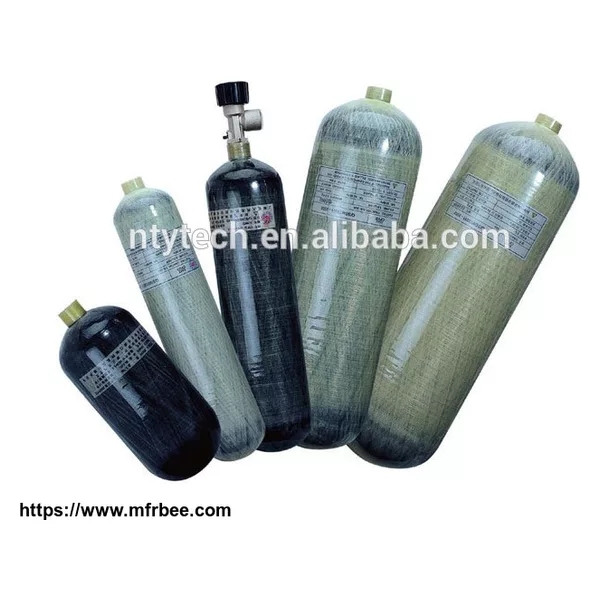

CNG Cylinder Type 3
Type 3 tanks have a metal liner(typically aluminum) and are completely wrapped with a composite material. Their capacity starts getting larger and getting a 23 GGE tank is a more reasonable choice for fleets. These larger capacity tanks allow a vehicle to be able to travel a lot farther on one fill.
