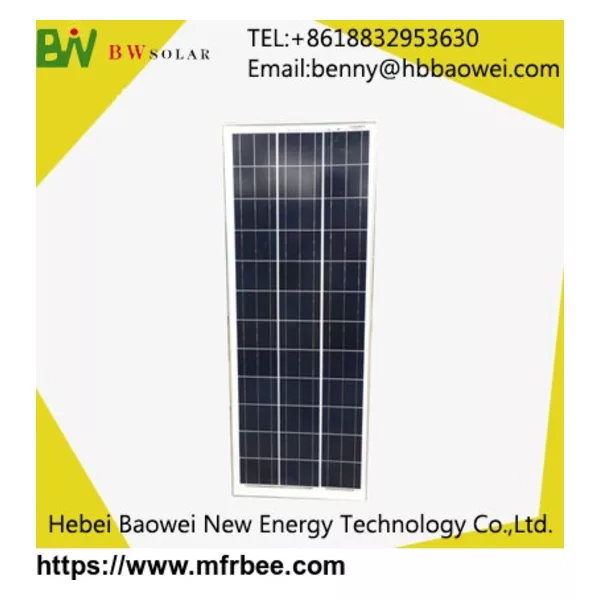

BAOWEI-100-36P Polycrystalline Solar Module
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Quick Information
- Brand Name:Baowei
- Place of Origin:China
- Model Number :08
- Material :Polycrystalline Silicon
- Max. Power :18V
- Number of Cells :36 (3*12)
- Size :1320*540*35mm
- warranty :25 years
- application :for solar system
- frame :anodized aluminum alloy
- power tolerance :±3%
- tempered glass :3.2mm
Description
BaoWei-100-36P Polycrystalline Solar Module
| Mechanical Data | |
| Cell type | Poly156mm*104mm |
| No. cells | 36 (3*12) |
| Size | 1320*540*35mm |
| Weight | 9.0kg |
| Electrical Data | |||
| (STC: Irradiance 1000w/m², module temperate 25℃, AM=1.5) | |||
| Power | 90W | 95W | 100W |
| Max. power voltage (Vmp) | 18V | 18V | 18.2V |
| Max. power current (Imp) | 5.01A | 5.28A | 5.56A |
| Open circuit voltage (Voc) | 21.6V | 21.6V | 21.2V |
| Short circuit current (Isc) | 5.51A | 5.81A | 6.10A |
| Power Tolerance | ±3% | ||
| Normal Operating Cell Temp(NOCT) | -40/+85℃ | ||
| Tem compensation coefficient | -（0.45±0.05）%/ ℃ | ||
| Tem of ISC | (0.065±0.015)%/ ℃ | ||
| Tem of VOC | -（80±10）mv/℃ | ||
| Tempered Glass | 3.2mm |
Packaging & Delivery
- Minimum Order :100 pc
- Supply Ability :100 mw per year
- Country: China (Mainland)
- Business Type: Manufacturer,Distributor/Wholesaler
- Market: Africa,Americas,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
- Founded Year: 2015
- Address: Gucheng Industrial Zone, Xingtai, Hebei, Longyao
- Contact: yanqianggao
