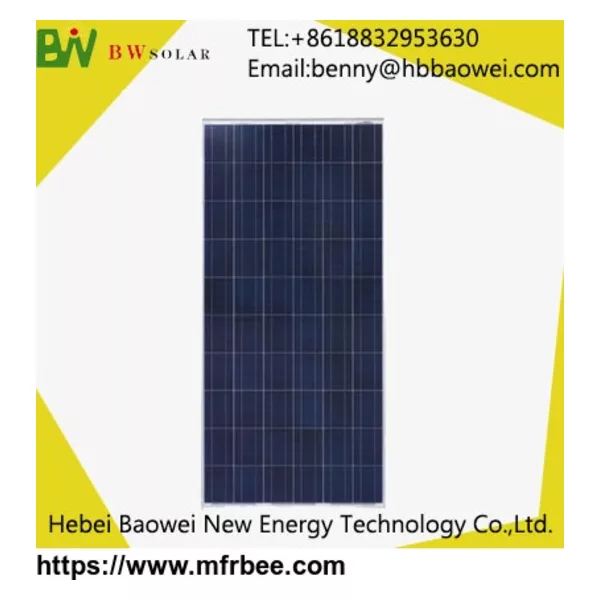

BAOWEI-250-60P Polycrystalline Solar Module

Minimum Order
1
Place Of Origin
china
Packaging
N/A
Delivery
15 Days

Quick Information

  • Brand Name:Baowei
  • Place of Origin:China
  • Model Number :04
  • Material :Polycrystalline Silicon
  • Max. Power :30.18V
  • Number of Cells :60 (6*10)
  • Size :1640*992*40mm
  • warranty :25 years
  • application :for solar system
  • frame :anodized aluminum alloy
  • power tolerance :±3%
  • tempered glass :3.2mm

Description

BaoWei-250-60P Polycrystalline Solar Module

Mechanical Data
Cell type Poly156mm*156mm
No. cells 60 (6*10)
Size 1640*992*40mm
Weight 19.5kg
Electrical Data
(STC: Irradiance 1000w/m², module temperate 25℃, AM=1.5)
Power 230W 240W 250W
Max. power voltage (Vmp) 30.18V 30.18V 30V
Max. power current (Imp) 7.63A 7.96A 8.33A
Open circuit voltage (Voc) 35.8V 35.8V 35.8V
Short circuit current (Isc) 8.39A 8.75A 9.08A
Power Tolerance ±3%
Normal Operating Cell Temp(NOCT) -40/+85℃
Tem compensation coefficient -(0.45±0.05)%/ ℃
Tem of ISC (0.065±0.015)%/ ℃
Tem of VOC -(80±10)mv/℃
Tempered Glass 3.2mm




Packaging & Delivery

  • Minimum Order :100 pc
  • Supply Ability :100 mw per year
  • Country: China (Mainland)
  • Business Type: Manufacturer,Distributor/Wholesaler
  • Market:Africa,Americas,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
  • Founded Year:2015
  • Address:Gucheng Industrial Zone, Xingtai, Hebei, Longyao
  • Contact:yanqianggao
