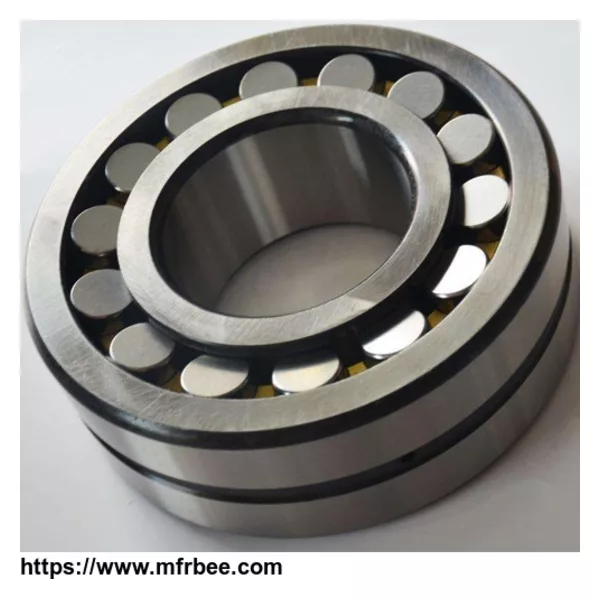

Spherical Roller Bearing 23052MBW33
Product sourcing details
- FOB Price
- USD $519.00 / Piece
- Minimum Order
- 10
- Place Of Origin
- China
- Packaging
- 1pcs each Wooden Cartion
- Delivery
- 30 Days
Specifications
Spherical Roller Bearing 23052MBW33
Inner Ring: 260.000mm
Outer Ring: 400.000mm
Width: 104.000mm
Chamfer: 4mm
Basic Dynamic Load Rating: 1470KN
Basic Static Load Rating: 2805KN
Limited Speed (rpm): 972(grease)/1344(oil)
Gross Weight: 51.5kg
Brass Cage
Equipped with an outer ring with a spherical raceway surface and an inner ring which holds two rows of barrel-shaped rolling elements, spherical roller bearings can adjust center alignment to handle inclination of the axle or shaft.
Spherical roller bearings are available with cylindrical or tapered bores, and can have different features such as bronze or steel retainers and with or without oil holes. Standard sizes range from 90mm* inside diameter to 1820 mm* outside diameter. Spherical roller bearing standard series consist of: 21300, 22200, 22300, 23000, 23100, 23200, 23900, 24000, 24100.
Inner Ring: 260.000mm
Outer Ring: 400.000mm
Width: 104.000mm
Chamfer: 4mm
Basic Dynamic Load Rating: 1470KN
Basic Static Load Rating: 2805KN
Limited Speed (rpm): 972(grease)/1344(oil)
Gross Weight: 51.5kg
Brass Cage
Equipped with an outer ring with a spherical raceway surface and an inner ring which holds two rows of barrel-shaped rolling elements, spherical roller bearings can adjust center alignment to handle inclination of the axle or shaft.
Spherical roller bearings are available with cylindrical or tapered bores, and can have different features such as bronze or steel retainers and with or without oil holes. Standard sizes range from 90mm* inside diameter to 1820 mm* outside diameter. Spherical roller bearing standard series consist of: 21300, 22200, 22300, 23000, 23100, 23200, 23900, 24000, 24100.
- Company: Cojinete Bearings Co., Ltd
- Country: China (Mainland)
- Business Type: Manufacture middle and large size spherical roller bearings, tapered roller bearings, cylindrical roller bearings, mill bearings, deep groove ball bearings, thrust ball bearings and angular contact ball bearings. Inner diameter choice above 90mm.
- Market: Americas,European Union,Oceania
- Founded Year: 1995
- Address: Industrial Park, Wa Wo Town
- Contact: Simon Yin
