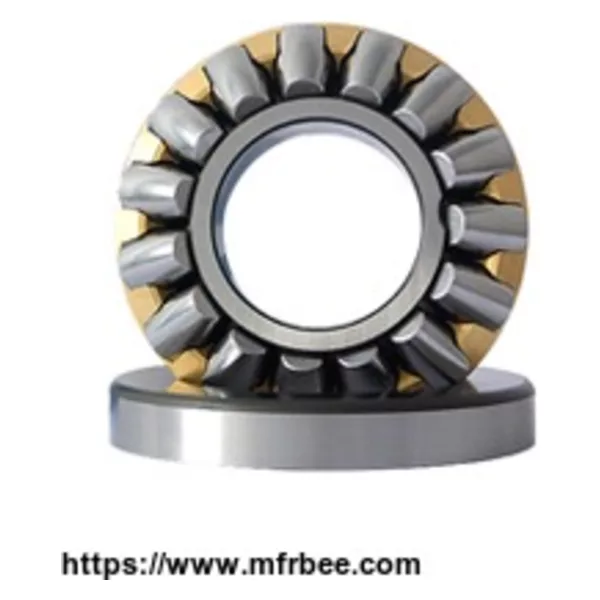

Spherical Thrust Roller Bearing 29338

Spherical Thrust Roller Bearing 29338

Inner Ring: 190.000mm
Outer Ring: 320.000mm
Width: 78.000mm
Chamfer: 4mm
Basic Dynamic Load Rating: 1470KN
Basic Static Load Rating: 5225KN
Limited Speed (rpm): 810(grease)/1120(oil)
Gross Weight: 25kg
Brass Cage

Spherical thrust roller bearings also called spherical roller thrust bearings have specially designed raceways and barrel-shaped rollers (convex rollers). The raceway of housing washer of this bearing type is spherical with the center of the radius located on the bearing axis. Spherical thrust roller bearings are separable design, making it possible to mount and dismount the housing washer separately from the shaft washer and roller and cage assembly, as well as maintenance inspections. The design provides self- alignment capability to the bearing, some shaft misalignment can be tolerated. The Contact angle is approximately 45° enabling the bearing to support high axial load and radial load up to 55% of axial load. They are suitable for relatively high speeds. The bearings have pressed steel cages or machined brass cages. Because of the large load capacity and self-aligning characteristics, Spherical thrust roller bearing is often used for injection molding machines, crane hooks and other large machines.

29320: 100mm*170mm*42mm
29420: 100mm*210mm*67mm
29322: 110mm*190mm*48mm
29422: 110mm*230mm*73mm
29324: 120mm*210mm*54mm
29424: 120mm*250mm*78mm
29326: 130mm*225mm*58mm
29426: 130mm*170mm*85mm
29328: 140mm*240mm*60mm
29428: 140mm*280mm*85mm
29330: 150mm*250mm*60mm
29430: 150mm*300mm*90mm
29332: 160mm*270mm*67mm
29432: 160mm*320mm*95mm
29334: 170mm*280mm*67mm
29434: 170mm*340mm*103mm
29236: 180mm*250mm*42mm
29336: 180mm*300mm*73mm
29436: 180mm*360mm*109mm
29238: 190mm*270mm*48mm
29338: 190mm*320mm*78mm
29438: 190mm*380mm*115mm
29240: 200mm*280mm*48mm
29340: 200mm*340mm*85mm
29440: 200mm*400mm*122mm
29244: 220mm*300mm*48mm
29344: 220mm*360mm*85mm
29444: 220mm*420mm*122mm
29248: 240mm*340mm*60mm
29348: 240mm*380mm*85mm
29448: 240mm*440mm*122mm
29252: 260mm*360mm*60mm
29352: 260mm*420mm*95mm
29452: 260mm*480mm*132mm
29256: 280mm*380mm*60mm
29356: 280mm*440mm*95mm
29456: 280mm*520mm*145mm
29260: 300mm*420mm*73mm
29360: 300mm*480mm*109mm
29460: 300mm*540mm*145mm
29264: 320mm*440mm*73mm
29364: 320mm*500mm*109mm
29268: 340mm*460mm*73mm
29468: 340mm*620mm*170mm
29272: 360mm*500mm*85mm
29372: 360mm*560mm*122mm
29472: 360mm*640mm*170mm
29276: 380mm*520mm*85mm
29376: 380mm*600mm*132mm
29476: 380mm*670mm*175mm
29280: 400mm*540mm*85mm
29380: 400mm*620mm*132mm
29480: 400mm*710mm*185mm
29284: 420mm*580mm*95mm
29384: 420mm*650mm*140mm
29292: 460mm*620mm*95mm
292/600: 500mm*670mm*103mm
293/500: 500mm*750mm*150mm
294/500: 500mm*870mm*224mm
292/560: 560mm*750mm*115mm
294/560: 560mm*980mm*250mm
292/600: 600mm*800mm*122mm
293/630: 630mm*950mm*190mm
293/710: 710mm*1060mm*212mm
