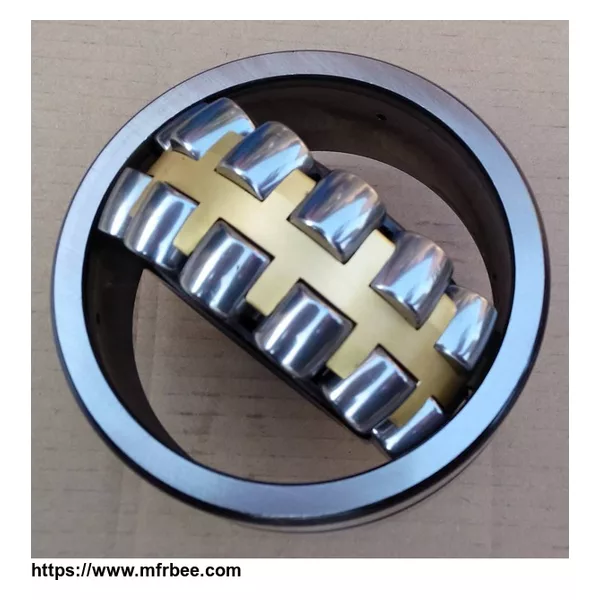

Spherical Roller Bearing 22328CAW33

Place Of Origin
China
FOB Price
USD $259.00 / Piece
Minimum Order
20
Packaging
5pcs each Wooden Cartion
Delivery
20 Days
Spherical Roller Bearing 22328CAW33
Inner Ring: 140.000mm
Outer Ring: 300.000mm
Width: 102.000mm
Chamfer: 4mm
Basic Dynamic Load Rating: 1187KN
Basic Static Load Rating: 1716KN
Limited Speed (rpm): 1188(grease)/1680(oil)
Gross Weight: 34.9kg
Brass Cage
Equipped with an outer ring with a spherical raceway surface and an inner ring which holds two rows of barrel-shaped rolling elements, spherical roller bearings can adjust center alignment to handle inclination of the axle or shaft.
Spherical roller bearings are available with cylindrical or tapered bores, and can have different features such as bronze or steel retainers and with or without oil holes. Standard sizes range from 90mm inside diameter to 1820 mm outside diameter. Spherical roller bearing standard series consist of: 21300, 22200, 22300, 23000, 23100, 23200, 23900, 24000, 24100.
  • Country: China (Mainland)
  • Business Type: Manufacture middle and large size spherical roller bearings, tapered roller bearings, cylindrical roller bearings, mill bearings, deep groove ball bearings, thrust ball bearings and angular contact ball bearings. Inner diameter choice above 90mm.
  • Market:Americas,European Union,Oceania
  • Founded Year:1995
  • Address:Industrial Park, Wa Wo Town
  • Contact:Simon Yin
