Dingtao Industrial Co.,Ltd
Brand:wonderful-test

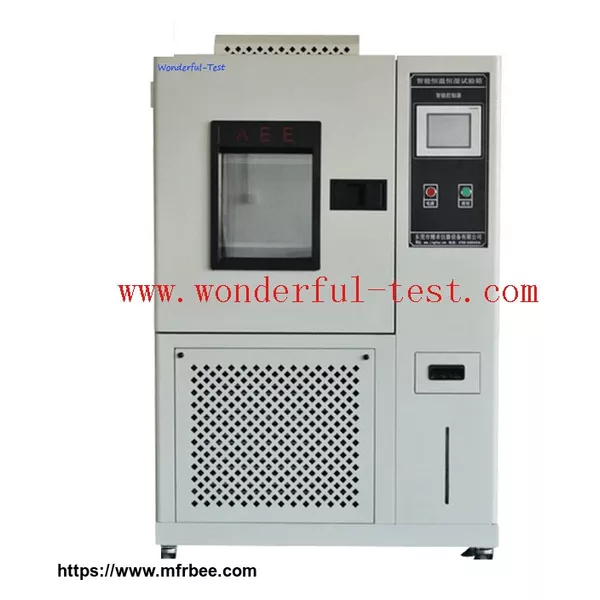

Temperature Humidity Test Chamber 80A
Type |
WT-H 80A |
WT-H 150A |
WT-H 416A |
WT-H 800A |
WT-H 80B |
WT-H 150B |
WT-H 416B |
WT-H 800B |
WT-H 80C |
WT-H 150C |
WT-H 416C |
WT-H 800C |
WT-H 150D |
AHL -416D |
WT-H 800D |
|
Inside Dimension mm | W | 400 | 500 | 700 | 1000 | 400 | 500 | 700 | 1000 | 400 | 500 | 700 | 1000 | 500 | 700 | 1000 |
H | 500 | 600 | 850 | 1000 | 500 | 600 | 850 | 1000 | 500 | 600 | 850 | 1000 | 600 | 850 | 1000 | |
D | 400 | 500 | 700 | 800 | 400 | 500 | 700 | 800 | 400 | 500 | 700 | 800 | 500 | 700 | 800 | |
Outside Dimension mm | W | 930 | 1030 | 1230 | 1530 | 930 | 1030 | 1230 | 1530 | 930 | 1030 | 1230 | 1530 | 1030 | 1230 | 1530 |
H | 1310 | 1410 | 1660 | 1810 | 1310 | 1410 | 1660 | 1810 | 1310 | 1410 | 1660 | 1810 | 1410 | 1660 | 1810 | |
D | 810 | 910 | 1210 | 1310 | 810 | 910 | 1210 | 1310 | 810 | 910 | 1210 | 1310 | 910 | 1210 | 1310 | |
Volume L | 80 | 150 | 416 | 800 | 80 | 150 | 416 | 800 | 80 | 150 | 416 | 800 | 150 | 416 | 800 | |
Temperature range | 0℃~100℃(150℃) | -20℃~100℃(150℃) | -40℃~100℃(150℃) | -70℃~100℃(150℃) | ||||||||||||
The evenness of Humiture distribution |
±0.5℃ ±3%RH |
±1℃ ±5% |
±0.5℃ ±3%RH |
±1℃ ±5% |
±0.5℃ ±3%RH |
±1℃ ±5% |
±0.5℃ ±3%RH |
±1℃ ±5% |
||||||||
Temperature rising speed | 0℃~100℃about20min | -20℃~100℃about35min | -40℃~100℃about40min | -70℃~100℃about60min | ||||||||||||
Temperature falling speed | 20℃~0℃about20min | 20℃~-20℃about45min | 20℃~-40℃about60min | 20℃~-70℃about90min | ||||||||||||
Freezing system | one-dimensional fully sealed air cooling system | two-dimensional fully sealed air cooling system |
three-dimensional fully sealed air cooling system |
|||||||||||||
Humidity range | 20%~99%RH | humiture stability | ±0.2℃ ±2%RH | |||||||||||||
Humiture adjustment | the modes of balancing temperature and humidity adjustment | outside materials | stainless steel sus # 304 | |||||||||||||
Inside materials | stainless steel sus # 304 | humidifying system | surface evaporation, humidifier with stainless steel heating and equipped with a power off device when humidifier wants water and an over-temperature protection device. | |||||||||||||
Thermal material |
heat preserved by rock wool and hardened pu foaming |
heating system | heater with stainless steel dissipation | |||||||||||||
Circulatory system | convection by fan forced circulatory system | dehumidifying system | freezing dehumidifying system | |||||||||||||
Water supplying system |
The advance water tank, fully automatic water supplying control, device for reuse through recovery and circulatory filtering plus a warning device for insufficient water. |
|||||||||||||||
Safety devices | leakage and overload protection device, compressor overload protection device, power off device for over-temperature and over humidity, water insufficient protection device, over-temperature protection device for humidifier and the protection device for limit of temperature. | |||||||||||||||
Standard accessories | Two sets of the adjustable SS plate, the vacuum glass windows, the test hole, a lamp inside the operation room and a movable indicator. | |||||||||||||||
Options | Recorder | Power | AC220V、1PH、50/60HZ |
Dingtao Industrial Co.,Ltd mainly produce and supplys the following products: Salt Spray Test Chamber, Temperature And Humidity Test Chamber, Walk in temperature humidity Chamber, The Accuate Warm Air Drying Oven, Vacuum Drying Oven,Aging Test Chamber,Burn In Room,Combined Test Chamber,Condensate Test Chamber, Dust Test Chamber,Electromagnetic Vibration Test Bench,High & Low Temperature Chamber,Rapid temperature change test Chamber,Sulfur dioxide test chamber,Tensile Test Machine,Thermal Shock Chamber, and so on.
