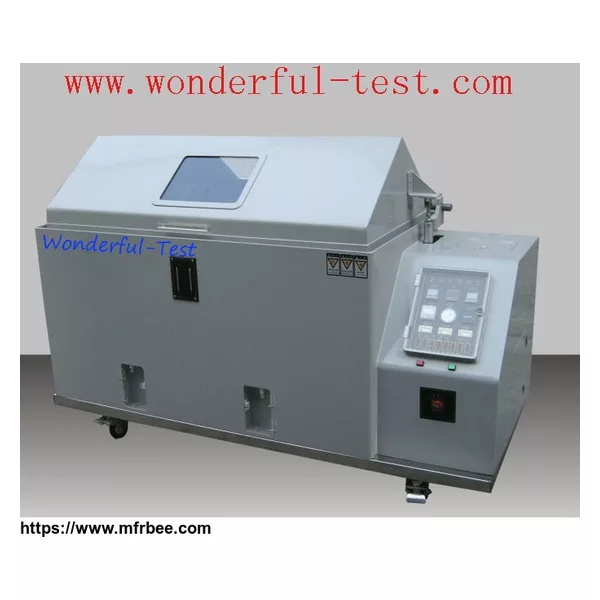

Precision Salt Spray Test Chamber WT-60A
Model | WT-60A |
Brand | Wonderful-Test |
Interior Dimension(W*D*H)(mm) | 600*450*400 |
Exterior Dimension(W*D*H)(mm) | 1070*600*1180 |
Laboratory temperature | NSS ACSS:35℃±1℃/CASS:50℃±1℃ |
Pressure barrel temperature | NSS ACSS:47℃±1℃/CASS:63℃±1℃ |
Laboratory volume(L) | 108 |
brine tank volume(L) | 15 |
Power | AC220V ±10V 15A |
concentration of saltwater | Sodium chloride concentration is 5% or when sodium chloride concentration is 5%,per L saltwater is added by 0.26 grams of copper dichloride |
PH ranges | 6.5~7.2 3.0~3.2 |
Air pressure | 1.00±0.01Kgf/cm³ |
Spray amount | 1.0~2.0ml/80cm³/h(At least collected 16hours,then averaged the results ) |
Relative laboratory temperature | above 85% |
Spray mode | continuous mode/ batch |
Temperature change degree | ≤0.5℃ |
Temperature evenness | ≤2℃ |
Temperature departure | ≤2℃ |
mainly produce and supplys the following products: Salt Spray Test Chamber, Temperature And Humidity Test Chamber, Walk in temperature humidity Chamber, The Accuate Warm Air Drying Oven, Vacuum Drying Oven,Aging Test Chamber,Burn In Room,Combined Test Chamber,Condensate Test Chamber, Dust Test Chamber,Electromagnetic Vibration Test Bench,High & Low Temperature Chamber,Rapid temperature change test Chamber,Sulfur dioxide test chamber,Tensile Test Machine,Thermal Shock Chamber, and so on.
TheSalt Spray Test Model Work Room Size (mm) Exterior Size (mm) Voltage Power (KW) YWX/Q-150 600x450x400 1100x750x930 1Phase/220V 2 YWX/Q-250 900x600x500 1500x900x1150 1Phase/220V 2.5 YWX/Q-750 1100x750x500 1700x1050x1150 1Phase/220V 3.5 YWX/Q-010 1200x800x500 1800x1100x1200 ...
TheSalt Spray Test Model Work Room Size (mm) Exterior Size (mm) Voltage Power (KW) YWX/Q-150 600x450x400 1100x750x930 1Phase/220V 2 YWX/Q-250 900x600x500 1500x900x1150 1Phase/220V 2.5 YWX/Q-750 1100x750x500 1700x1050x1150 1Phase/220V 3.5 YWX/Q-010 1200x800x500 1800x1100x1200 ...
Uses Our company produces the series of SAO salt spray test chamber, is against the surface of various materials after plating, anodizing, painting, oil, rust corrosion treatment, test the products of corrosion; so under specific environmental conditions on the sample in an ...
Product Summary This company produces the series of SAI salt spray test chamber,is aimed at all kinds of plating,anodizing,coating on the surface,rust-proof oil, such as corrosion process, test the corrosion resistance of their products;In order to try to make analysis and ...
Model LRHS-108-RY LRHS-270-RY LRHS-412-RY LRHS-663-RY LRHS-816-RY LRHS-1080-RY Test volume 108 L 270 L 412 L 663 L 816 L 1080 L Internal dimension 450x600x400 600x900x500 750x1100x500 850x1300x600 850x1600x600 900x2000x600 Overall dimension 700x1200x1100 870x1400x1150 ...
Model LRHS-412-RY Dimension of Working Room DxWxH 750mm x 1100mm x500mm Overall Dimension DxWxH 1030mm x1680mm x1260mm Volume 412.5 L 1. Technical indexes 1.1. Temperature range Ambient +5deg Cto+55deg C 1.2. Air saturator Ambient +10deg Cto70deg C 1.3. Humidity range 85to98%RH ...
Place of Origin:Maharashtra India SALT SPRAY TEST CHAMBER As per ASTM B 117. ...
