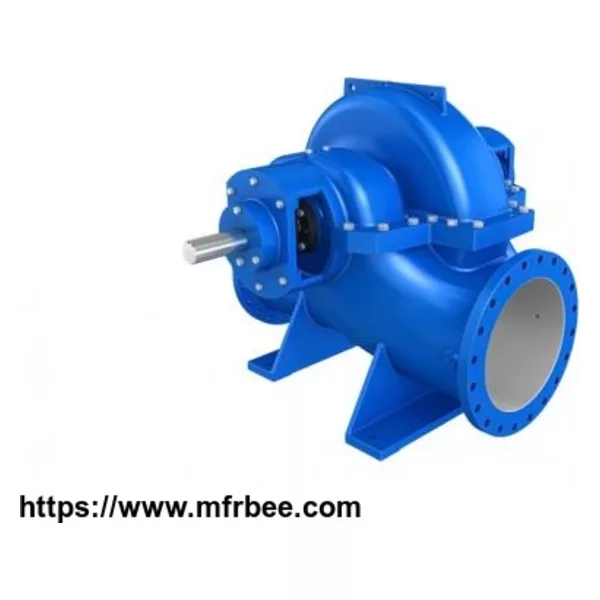

NMZ Type Horizontal Split Case Centrifugal Pump
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Description of Horizontal Split Case Pump
NMZ series are horizontal, single stage, axially split case, double suction, between bearing, centrifugal pumps. It’s suitable for pumping clean water or slightly contaminated water or liquids which is physically and chemically similar to water, where large quantity and certain head are required. The axially split casing design makes it’s easy to remove the upper volute casing and rotary components without disturbing the motor and the pipework. And the double suction impeller ensures high efficiency.Horizontal Centrifugal Pump
- Axially pump casing
- Dual Volute Casing
- Between bearing design
- Wear Rings
- Sealing Flexibility
Horizontal Split Case Pump Operation Data:
| 50Hz | 60Hz | |
| 40 to 500mm | Discharge Diameter | 1.6 to 32 in |
| 50 to 11,600m³/h | Capacities | 220 to 51,073 USgpm |
| Up to 260m | Heads | Up to 656 ft |
| Up to 2.5MPa | Pressures | Up to 362.6 psi |
| Up to 120° C | Temperatures | Up to 248 ° F |
Horizontal Axial Split Casing Pump Application:
Water transportWater supply and distributionIrrigation, drainage and flood controlDistrict cooling/heatingFire fightingHorizontal Split Case Centrifugal Pump Material Available:
| Pump Part | Material Combination | |||||||
| Cast Iron | Ductile Iron | Carbon Steel | SS 304 | SS 316L | Duplex | Super Duplex | Bronze | |
| Casing | Cast Iron | Ductile Iron | Carbon Steel | SS304 | SS316 | Duplex | Super Duplex | Bronze |
| impeller | Cast Iron | Ductile Iron | Carbon Steel | SS304 | SS316 | Duplex | Super Duplex | Bronze |
| Shaft | SS 420 | SS304 | Duplex | Super Duplex | ||||
| Seal housing | Cast Iron | Ductile Iron | Carbon Steel | SS304 | SS316 | Duplex | Super Duplex | Bronze |
| Stationary Ring | Carbon Steel | SS304 | SS316 | Duplex | Super Duplex |
