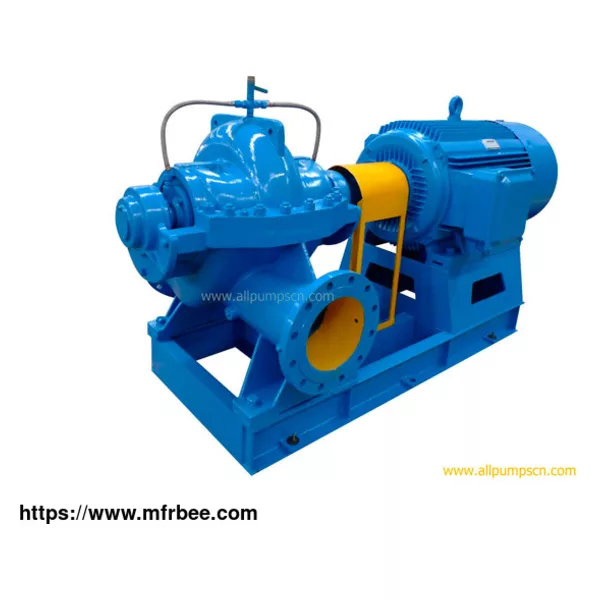

SPLIT CASE CENTRIFUGAL PUMPS

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

TPOW series single-stage double suction split case centrifugal pump adopts the original and modified impeller and cutting and has the characteristics of full range, wide range and high efficiency. The centrifugal horizontal split case pump can provide the operating point of any flow and head required by the user within the spectrum performance range.

FEATURES OF SPLIT CASE CENTRIFUGAL PUMPS

1. Compact structure, space saving and shorter axial dimension.

2. Small vibration and low noise, mainly achieved by the following methods:

3. The pump casing adopts double volute structure;

4. The axial dimension of the rotor part is short and the rigidity is good.

5. The pump shaft is supported by imported high-precision bearings.

Searching for a durable China single stage centrifugal pump? Contact All Pumps Machinery and learn about the impressive features it offers. We carry several other products that are worth considering, like the China centrifugal sand pump.

SPECIFICATION OF SPLIT CASE CENTRIFUGAL PUMPS

Pump Connection Size 3"- 60" (80mm - 1500mm)

Max. Pump Flowrate 11600m3/h (51078 GPM or 3222L/S)

Max. Pump Head 200m (656 feet)

Speed Range 730rpm to 2950rpm

Max. Temperature 231°F / 105°C

Max. Working Pressure 2.5MPa

Shaft Sealing Mechanical Seal, Gland Packing

Materials of Construction Cast Iron, Cast Steel, Ductile Iron, Stainless Steel 304/316, Bronze etc.

As one of the most professional industrial pumps suppliers, we provide axial split case centrifugal pumps, split case pump vs centrifugal pump, horizontal split casing centrifugal pump, vertical split case centrifugal pump, horizontal split case centrifugal pump, split case centrifugal pumps, self priming pumps, etc. For more information, please feel free to contact us!

Country: China (Mainland)
Business Type: Manufacturer
Market:Africa
Founded Year:
Address:JINSHAN INDUSTRIAL ZONE, SHANGHAI 201507, CHINA
Contact:allpumpscn .com

more images of SPLIT CASE CENTRIFUGAL PUMPS
