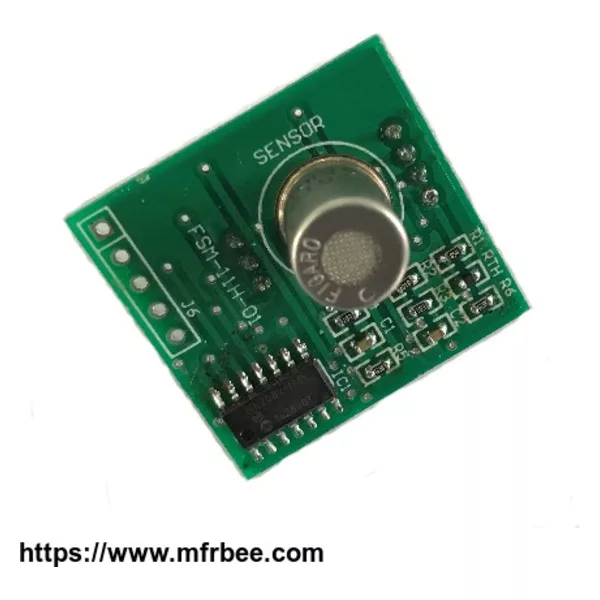

FSM-BP-01 Pre-Calibrated Combustible Gas Sensor Module
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- Japan
- Brand Name
- Figaro
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
FSM-BP-01Combustible gas sensor Module Features:
* PWM, USART digital output proportional to gas concentration
* Maintain Free
* Compact size, low cost
* Meets RoHS requirement
FSM-BP-01Combustible Gas sensor Module Applications:
* Detect flammable gas leakage
* Flammable gas leakage Detector
* Industrial detector
FSM-BP-01 is pre-calibrated module for LPG gas alarm which applies TGS2610-D00 sensor together, it features durability and stability. The module outputs PWM signal which is proportional to LPG gas concentration (The module has a memory which is stored with factory calibration data), also is capable of detecting sensor wire breakage and short. The module can operate at wide temperature from -10~70°C.
Furthermore, the unit is less sensitivity to VOCs gas, it immunes poison by silicon compounds, it suits to work at rugged environment.
FSM-BP-01Combustible Gas Sensor Module Output characters:
The module outputs PWM and USART signal which is proportional to LPG gas
concentration
1. PWM output(Frequency is 2KHz),
Vo=V*DUTY2( Vo is output voltage, V is input voltage, DUTY is duty cycle)
2. USART output
The module output data every 100ms, the data format:
FSM-BP-01Combustible Gas Sensor Module Specification:
* PWM, USART digital output proportional to gas concentration
* Maintain Free
* Compact size, low cost
* Meets RoHS requirement
FSM-BP-01Combustible Gas sensor Module Applications:
* Detect flammable gas leakage
* Flammable gas leakage Detector
* Industrial detector
FSM-BP-01 is pre-calibrated module for LPG gas alarm which applies TGS2610-D00 sensor together, it features durability and stability. The module outputs PWM signal which is proportional to LPG gas concentration (The module has a memory which is stored with factory calibration data), also is capable of detecting sensor wire breakage and short. The module can operate at wide temperature from -10~70°C.
Furthermore, the unit is less sensitivity to VOCs gas, it immunes poison by silicon compounds, it suits to work at rugged environment.
FSM-BP-01Combustible Gas Sensor Module Output characters:
The module outputs PWM and USART signal which is proportional to LPG gas
concentration
1. PWM output(Frequency is 2KHz),
Vo=V*DUTY2( Vo is output voltage, V is input voltage, DUTY is duty cycle)
2. USART output
The module output data every 100ms, the data format:
FSM-BP-01Combustible Gas Sensor Module Specification:
| Product name | Combustible gas sensor module | |
| Model No. | FSM-BP-01 | |
| Gas sensor | TGS2610-D00(Semiconductor) | |
| Detection range | 0 ~ 4,000ppm H2 (also can detect methane, iso-butane, and propane) | |
| Error | ±300ppm | |
| Response time (T90) | ≤30S | |
| Operating conditions | -10˚C ~+70˚C, 20~95%RH(No condensing) | |
| Storage conditions | -10˚C ~+80˚C, 20~95%RH | |
| Input voltage (VIN) | 5.0±0.2V DC | |
| Power consumption | ≤1.5W | |
| Weight | 15g or less | |
| Dimensions | 26*27mm | |
| Standard test conditions | Ambient conditions | 20±2˚C, 65±5%RH |
| Circuit conditions | 5.0±0.2V | |
| Conditioning period prior to test | ≥10 minutes |
