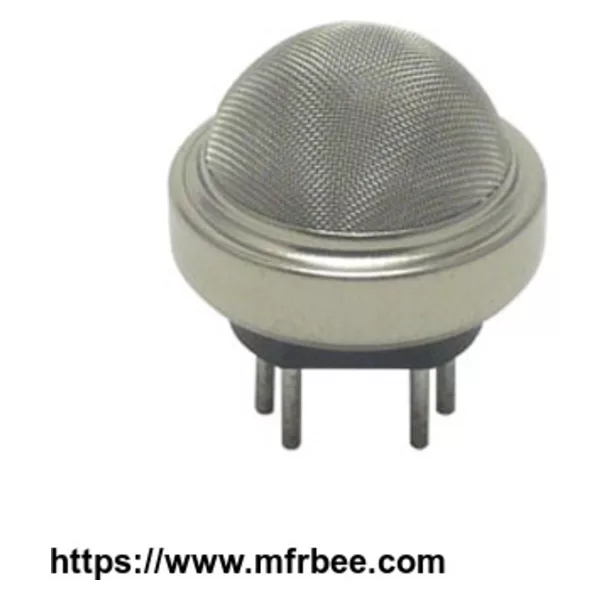

TGS821 Special Sensor for Hydrogen Gas

TGS821 - Special Sensor for Hydrogen Gas

Features:
* High sensitivity and selectivity to hydrogen gas
* Good repeatability in measurement and excellent stability
* Uses simple electrical circuit
* Ceramic base resistant to severe environment

Applications:
* Hydrogen gas detection for:
- transformer maintenance
- batteries
- steel industry usage
- etc.

The sensing element of Figaro gas sensors is a tin dioxide (SnO2 ) semiconductor which has low conductivity in clean air. In the presence of a detectable gas, the sensor\'s conductivity increases depending on the gas concentration in the air. A simple electrical circuit can convert the change in conductivity to an output signal which corresponds to the gas concentration.

The TGS 821 has high sensitivity and selectivity to hydrogen gas. The sensor can detect concentrations as low as 50ppm, making it ideal for a variety of industrial applications.

Standard Circuit Conditions:

• Target gases	Hydrogen
  Typical detection range	30-1,000ppm
  Sensing principle	MOS type
  Driving voltages	Heater Voltage:5.0V Circuit Voltage:Max24V
  Power consumption	660mW (typical)
  Dimensions	φ19.5×16.5mm
  Weight	Approx. 7.7g
