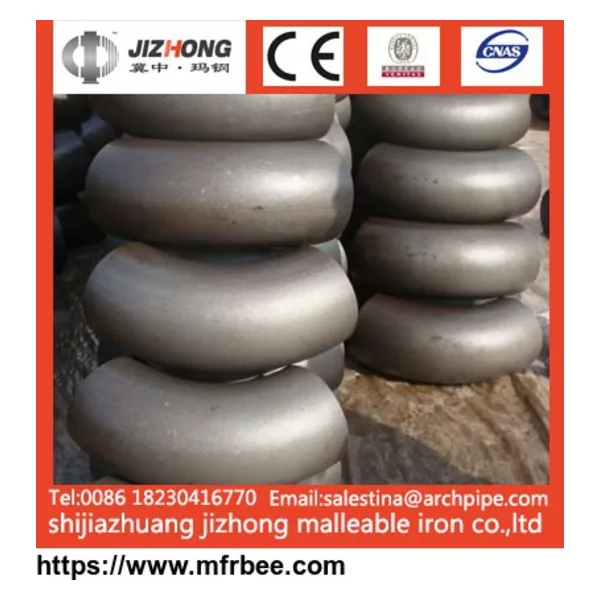

Butt Welding Pipe Fitting Elbows
Product Quick Detail
- Place Of Origin
- china
- Minimum Order
- 1
- Packaging
- Wooden case or Wooden Pallet
- Delivery
- 15 Days
Specifications
- Model NO.: JZM-221
- Shape: Equal
- Angle: 90 Degree
- Material: Iron
- Certification: ANSI, DIN, JIS, BS
- Trademark: JZM
- Origin: China
- Connection: Welding
- Head Code: Plain
- Wall Thickness: Sch40 Sch80
- Technics: Forged
- Color: Black
- Specification: 1/2"-48"
- HS Code: 7307930000
Describe
Elbow is a kind of common pipe fitting for connecting two pipes with same or different nominal diameters, then make the pipeline turn in certain angle. In pipeline system, elbow is used in changing the direction of pipeline.
Detailed introduction
Product Name: Elbow
Product Number: NO258
Welded Elbow: 4"~78" DN150~DN1900
WAll THICKNESS
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
Maximum thickness: 150mm
Materials
Carbon steel: ASTM/ASME A234 WPB,WPCAlloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Stanless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
Low-temperature steel:ASTM/ASME A402 WPL 3-WPL 6
High performance: ASTM/ASME A860 WPHY 42-46-52-60-65-70
- Country: China (Mainland)
- Business Type: Manufacturer,Distributor/Wholesaler,Trading Company
- Market:Americas,Emerging Markets,Africa,Middle East
- Founded Year:1998
- Address:Malleable Iron Zone,Shijiazhuang,Hebei,Province.
- Contact:Bonny quan
