Galvanized Malleable Iron Pipe Fittings
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- china
- Packaging
- Two inner boxes then master seaworthy carton
- Delivery
- 15 Days
Specifications
Describe

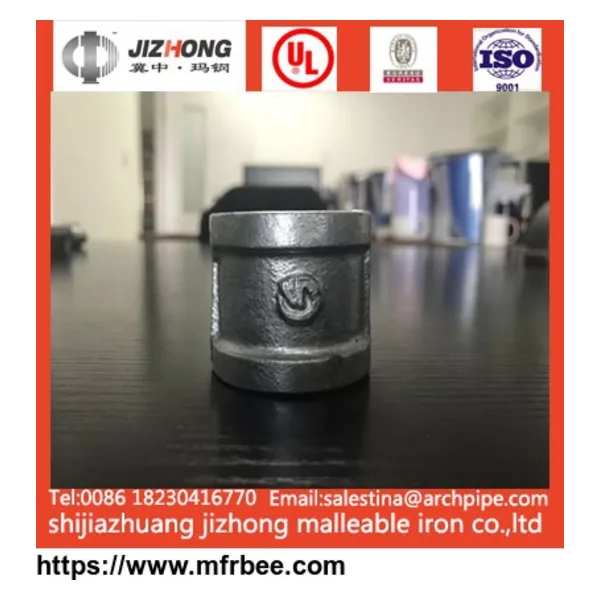

Black/hot dipped galvanized malleable cast iron pipe fittings standard UL approved banded
Detailed introduction
Type: sockets.
Size: 1/4''to 6''
Finish: Black, Electro Galvanized, Hot Dipped Galvanized
Usage: Plumbing accessory, suitable for joining pipe lines of steam, gas, oil, air
American Standard: Material: ASTM A-197
Dimension: ASME B16.3 16.14 B16.39
Galvanization: ASTM A153
Threads: ANSI BI.20.1 NPT
Mechanical Property:
Tensile strength: Min. 300MPa
Elongation: Min.6%
Hardness: Max. 150HB
Delivery: 45-50days after prepayment
Packing: Two inner boxes then master seaworthy carton.
