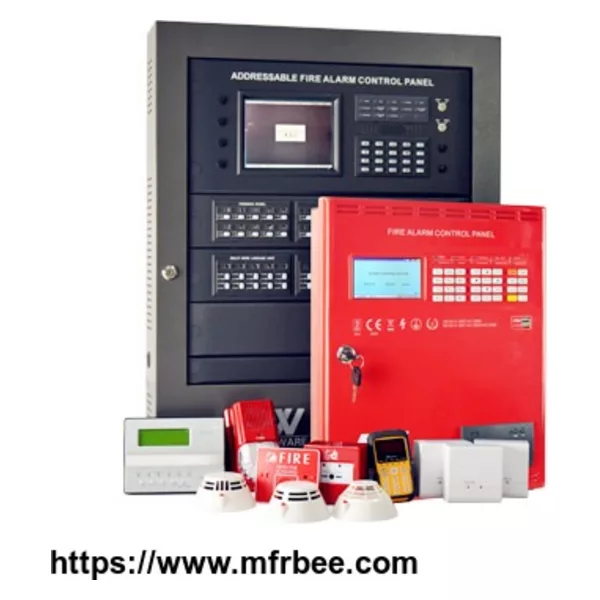

Addressable Fire Alarm Control Panel

Place Of Origin
China (Mainland)
Minimum Order
1
Packaging
N/A
Delivery
3-5 Days
Addressable fire alarm control panel for fire alarm system
AW-AFP2100 series control panel (linkage type) (fire alarm control panel) is a new generation product launched by Asenware
In order to adapt to the needs of engineering design, the fire alarm control panel is designed with a linkage control function that enables it to be flexibly used with other related products from Asenware to form a fire alarm and linkage integrated control system
Particularly suitable for applications in large and medium-sized fire alarm and linkage integrated control systems
AW-AFP2100 series addressable control panel is a dual wire analog bus system
It can replace the conventional fire alarm system to save 50% or more cables
AW-AFP2100 series addressable control panel is an advanced, perfect and reliable system, which is designed for big projects, has been used in many countries
Features:
1. New generation high-speed microprocessor technology
2. Operating interfaces simulate the menus and interfaces of Windows
3. Non-polarity two-bus intelligent alarm linkage mode adoption
4. Controllable standard PS/2 computer keyboard and mouse as on-site programming devices
5. Each detector sensitivity adjustable
6. 7.4'LCD back-light display
7. Windows menu and interface
8. English interface and panel display
9. CF card duplicate or reset system setup file and history file to facilitate maintenance
10. Single point test of detector/module
11. Zone, building or floor integration and display
12. Graphic monitor system visually display the location of fire and trouble
13. Eleven users each with a password and selectable access levels
14. Field software upgrade
15. 20 AW-AFP2100 peer-to-peer, long-distance optical fiber transmission network via can communication transform module
16. Flexible collocation by modularized combination
Capacity:
1. Each loop card has 2 loops, with 324 addresses as alarm/control points of each loop, the capacity of each loop card is 324*2=648 (addresses)
2. Each wall mounted AW-AFP2100 panel can be installed maximum 3 loop cards, the maximum capacity is 648*3=1944 (addresses)
Over 1944 addresses, use the cabinet panel, the cabinet panel can be installed maximum 40 loop cards, the maximum capacity is 648*40=25920 (addresses)
3. Peer-to-peer with max 20 AW-AFP2100 panels, the maximum system capacity: 25,920*20=518,400 (addresses)
Maximum simultaneous alarm of each host:
Fire alarm: 500
Trouble: 500
Feedback: 500

Parameters
Temperature -10 to +55°C
Relative humidity ≤95% (40°C, non-condensing)
AC power 220V AC, 50Hz, 3A
DC power 24V DC,7.0Ah
Weight (without batteries) 21.78kg
Weight (with batteries) 26.1kg
