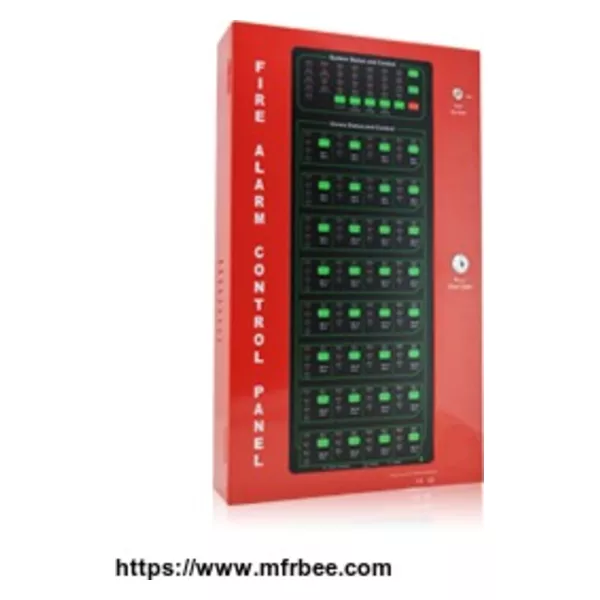

Asenware 12-32 Zone Conventional Fire Alarm Control Panel
Product Quick Detail
- Place Of Origin
- China (Mainland)
- FOB Price
- USD $155.00 / Piece
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 3-5 Days
Specifications
Features:
1 It is modularized design, the panel can expend from 1 zone to 32 zones easily.
2 It has 2 level control mode by a lock
3 It has 24V DC and 5V DC power supply output.
4 It has fire and fault signal output.
5 It has 2 general sounders output.
6 Each zone has 1 circuit detectors input.
7 Each zone can be disabled by a button.
8 It has reset button to reset the panel.
9 It has silence button to stop buzzer and sounders.
10 It has evacuate button to start a manual fire alarm immediately.
11 It has battery low protection function, when battery voltage lower than 21V DC, battery will be cut off automatically until the mains power is on.
12 It has an optional GSM module for fire alarm by SMS.
| Parameters | |
| Item | 12-32 zone panel |
| Model | AW-CFP2166-12-32 |
| Main supply voltage | 110VAC or 220VAC |
| Internal power supply | 27.2VDC |
| Total output current limited | 3A @ 240VAC |
| Batteries (default configuration) | 12V2.3AH*2 |
| End of line resistor value | 6.8k Ω,5% tolerance, 0.5-1W (colour code-blue,grey,red,gold) |
| End of line resistor value | 6.8k Ω,5% tolerance, 0.5-1W (colour code-blue,grey,red,gold) |
| Dimensions(mm) | 640x390x150mm |
| Weight (without batteries) | 8kg |
| Weight (with batteries) | 13kg |
