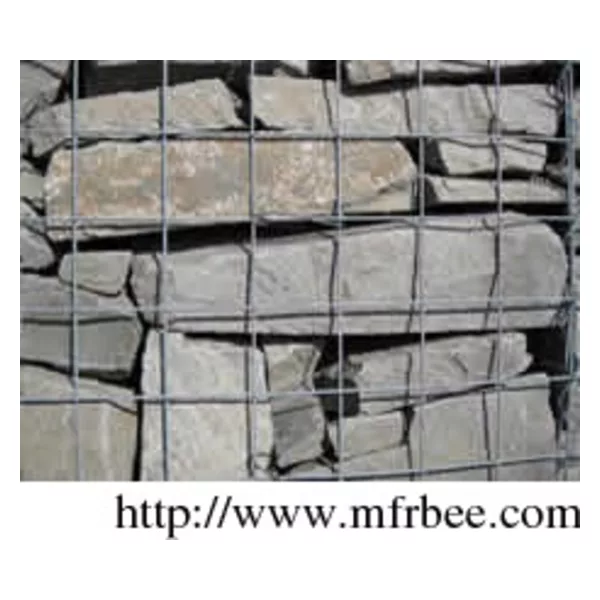

Our factory also can provide a variety of types welded gabion mesh. Gabion is an element in the form of blocks made of steel wire mesh, welded or woven, having hexagonal opening, square or rectangular openings. Welded gabion meshes are in the shape of block or regular cube size.
These special wire bins are made of robust wire, filled with the vibrations at the quarry and transport are accompanied by the lifting straps.
Welded Gabion meshes forms:
It includes welded gabion box, welded gabion basket, mattress, and the others. They are mainly used in building blocks of gravity walls, soil retaining wall, gravity wall and reinforced structures.
This mesh Specific Applications:
* Strengthening the slopes;
* Gabion retaining walls used for their flexibility, robustness and high drainage capacity;
* Geotechnical condition assembling;
* The expansion or construction of roads on the slopes;
* Construction of railway embankments;
* Rivers banks protecting;
* Other places.
Surface Treatment:
Galvanized welded wire, Stainless Steel Wire Mesh
Welded gabion mesh common Specifications:
Welded gabion mesh | ||
Specification in Meters | Diaphragms | Capacity cu. meters |
0.5 x 0.5 x 0.5 | 0 | 1.125 |
1 x 0.5 x 0.5 | 0 | 1.25 |
1 x 1 x 0.5 | 0 | .5 |
1 x 1 x 1 | 0 | 1 |
1.5 x .5 x .5 | 0 | 1.325 |
1.5 x 1 x .5 | 0 | 1.75 |
1.5 x 1 x 1 | 0 | 1.5 |
2 x 0.5 x 0.5 | 1 | 1.5 |
2 x 1 x 0.5 | 1 | 1 |
2 x 1 x 1 | 1 | 2 |
3 x 2 x 0.3 (Mattress) | 3 | 1.8 |
Sets of gabion steps 1m or 2m wide |
Specific specifications can be made for your requirements.
