Vibration Platform

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Vibration Platform Has High Compact Force

Vibration platform consists of bottom brackets, upper platform, vibrating motor and shock-absorbing device. Vibrating table is designed to settle and compact dry bulk materials (granules and powders) to different moulds and shapes in various types of containers. It can provide a sizeable increase in the net weight of the container or reducing in the container size with subsequent savings in shipping and storage space. Platform and base are connected by spring to make low noise and obvious damping effect. It can resistant to dust, heat, oil, explosion, wear, corrosion, acid, alkali. Shaking table is widely used in metallurgy, mould, food, chemical industries and Building material, etc.

A light blue vibration platform is placed on ground with a section of wire.

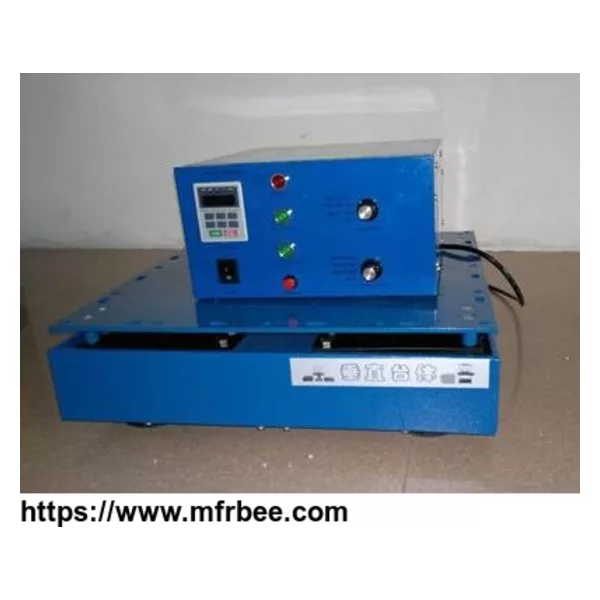

VP-1: Vibration platform can be resistant to dust, heat, oil and explosion.A blue vibrating table has vertical table and a controller on it.

VP-2: Vibrating table has low noise and high productivity.A blue shaking table has horizontal table and a controller on it.

VP-3: Shaking table can test sample of concrete and mortar.A green vibration platform machine is packaged by wooden board and iron wire.

VP-4: Vibration platform machine can be used in metallurgy, mould and food.

Specification

Color: blue, green, white, etc.

Vibration model

Up to down.

Screw vibration.

Three dimensional vibration.

Spring: steel spring, rubber spring, composite spring.

Motor quantity should be even number, such as 2, 4, 6, 8, etc.

Packing: Wooden packing.

Specification of Vibration Platform

Model Table size (mm) Area (m2) Power (kW) Amplitude (mm) Weight (kg)

VPS-1 500 × 500 0.25 2 × 0.25 2-5 300

VPS-2 800 × 800 0.64 1.6 0.5-2 450

VPS-3 1000 × 1000 1 2.4 0.5-2 600

VPS-4 1200 × 1200 1.44 2.4 0.5-2 860

VPS-5 1200 × 1200 1.44 2 × 3 2-5 1200

VPS-6 1500 × 1500 2.25 2 × 3 2-5 2000

VPS-7 1600 × 1200 1.92 3 2-5 1000

VPS-8 1600 × 1400 2.24 3 2-5 1250

VPS-9 2000 × 1600 3.2 4 2-5 1600

VPS-10 2000 × 1800 3.6 6 2-5 2000

VPS-11 2000 × 2000 4 7.5 2-5 3100

VPS-12 3000 × 3000 9 6 × 1.5 2-5 3000

VPS-13 4000 × 3000 12 7.5 2-5 4600

Feature

High productivity, good compaction effect, compact structure, low noise, low consumption, easy to use and repair, environment friendly.

Resistant to dust, heat, oil, explosion, wear, corrosion, acid, alkali.

Adjustable height of table, suitable for production line.

Vibration can be controlled separately, is suitable for complex casting product.

Self locking function permits extremely localized in production.

Vibrating force can be adjusted for working well in the process.

Vibrating motor is vibrating source which is low noise and low consumption, and easy to maintain.

Infinitely variable speeds.

Application

Vibration platform can be used for molding of test sample of concrete and mortar in the testing laboratory, can decrease and remove the gap or air between concrete material. It is widely used in metallurgy, mould, food, chemical industries and building material, etc.
