Steel Bending Machine

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Steel Bending Machine Bend Steel Bar to Any Shape

Steel bending machine is ideal equipment for steel bar bending work. It has two kinds of models which are common steel bending machine and full automatic steel bar bender. Rebar bending machine mainly consists of drive mechanism, framework and workbench. The machine adopts worm drive. The strength is high and no rebound when steel bar bending. The machine uses totally enclosed type case which can ensure the gear and bearing operate in sufficient lubrication and dustless condition. It is high efficiency to bend round steel bar or deformed steel bar to various shapes. Steel bar bender is usually used in road, bridge, tunnel and big construction project.

A steel bending machine has many round holes, four moving wheels and yellow gray body color.

SBM-1: Steel bending machine can bend steel bar to any shape you want.An automatic rebar bender has many round holes, four moving wheels and white gray body color.

SBM-2: Automatic rebar bender has higher efficiency than common steel bar bender.A yellow rebar bending machine is bending two deformed steel bar with one footswitch.

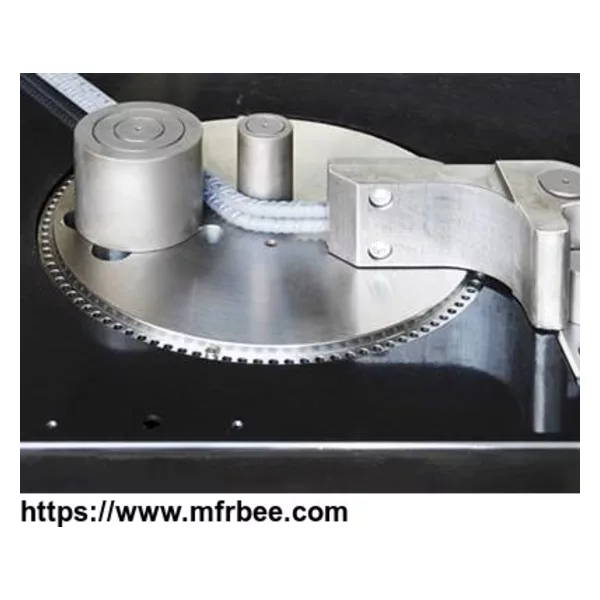

SBM-3: Rebar bending machine can bend one or more steel bar one time.Two steel bars are bent by steel bar bending machine.

SBM-4: Steel bar after bending is not rebound.

Specification

Motor type: automatic brake motor.

Gear box: cast steel.

Inside gear: C45 steel or cast steel.

Gear shaft, working disk, stop gauge: C45 steel.

Pile head: CR 40 steel.

External case: Q235.

Specification of Steel Bending Machine

Model Power of motor (kW) Voltage (V) Net weight (kg) Packing size (mm) Maximum bend diameter (mm) Rotation speed of working disc (r/min)

SBMS-1 1.5 380 4-16 25-30

SBMS-2 1.5 380 4-20 25-30

SBMS-3 3 380 240 790 × 790 × 880 Round steel bar 6-40

Deformed steel bar 6-32 8-15

SBMS-4 3 380 266 1020 × 825 × 950 Q235 steel 40

C45 steel 32 5-15

SBMS-5 3 320 810 × 760 × 860 6-36 12

SBMS-6 3 360 810 × 760 × 860 6-42 12

SBMS-7 3 380 365 920 × 950 × 950 Q235 steel 42

C45 steel 36 7-12

SBMS-8 3 380 1190 × 450 × 680 Round steel bar 6-40

Deformed steel bar 6-36 5-10

SBMS-9 4 380 380 1100 × 900 × 900 Round steel bar 6-50

Deformed steel bar 6-42 8-15

SBMS-10 4 410 950 × 800 × 1000 Round steel bar 6-45

Deformed steel bar 6-36 5-10

SBMS-11 4 420 950 × 800 × 1000 Round steel bar 10-50

Deformed steel bar 10-40 5-10

SBMS-12 4 380 595 1280 × 1130 × 1290 Q235 steel 55

C45 steel 45 7-8

SBMS-13 6 330 850 × 670 × 920 32

SBMA-14 7.5 450 1270 × 815 × 980 40

Specification of Steel Bending Machine

Model Bending speed Moving method Moving speed (m/s) Bending direction Power consumption (kW)

SBMS-15 36° - 72°/s Manual Unidirectional 5.5

SBMS-16 48°/s 0.5 Unidirectional 12

SBMS-17 48° - 72°/s 0.5-1 Bidirectional 4

SBMS-18 48° - 72°/s 0.5-1 Bidirectional 5

SBMS-19 48° - 72°/s Manual Unidirectional 8

SBMS-20 48° - 72°/s 0.5-1 Bidirectional 10

SBMS-21 48° - 72°/s 0.5-1 Bidirectional 12

Cutting Numbers of Different Model

Diameter (mm) SBMS-15 SBMS-16 SBMS-17 SBMS-18 SBMS-19 SBMS-20 SBMS-21

6 9

8 8

10 6 8 6 6 8

12 4 7 5 5 7 7 7

14 2 6 4 4 5 6 6

16 1 5 3 3 4 5 5

18 2 2 3 5 5

20 4 2 2 2 4 4

22 1 2 1 3 4

25 4 1 1 1 3 3

28 3 1 2 3

32 2 1 1 2

36 1 2

40 1 1 1

50 1 1

Specification of Steel Bending Machine

Model Single bar diameter range (mm) Double bar diameter range (mm) Triple bar diameter range (mm) Max. Bending angle Central mandrel diameter (mm) Max pulling speed (m/min) Max bending speed Average electric power consumption (kW)

SBMS-22 5-13 5-10 180° 15-30 110 1200°/sec 5

SBMS-23 5-13 5-10 180° 20-30 110 1200°/sec 5

SBMS-24 5-13 5-10 180° 20-30 110 1200°/sec 6

SBMS-25 6-16 6-12 180° 20-42 100 1200°/sec 10

SBMS-26 8-20 8-16 180° 25-100 105 850°/sec 10

SBMS-27 8-28 8-20 8-13 180° 4-200 180 500°/sec 17

Specification of Full Automatic Steel Bar Bender

Model Power of motor (kW) Voltage (V) Net weight (kg) Packing size (mm) Maximum bend diameter (mm) Rotation speed of working disc (r/min) Bend control way Structure of reduction gearbox

SBMS-28 3 380 320 810 × 780 × 840 Q235 steel 40

C45 steel 36 12 Automatic Gear type (steel)

SBMS-29 3 380 320 860 × 800 × 860 42 10-20

SBMS-30 3 380 380 920 × 950 × 950 Q235 steel 42

C45 steel 36 12 Automatic/manual Gear type (steel)

SBMS-31 4 380 380 810 × 780 × 840 Q235 steel 50

C45 steel 40 8/11 Automatic Gear type (steel)

SBMS-32 4 380 595 1150 × 1000 × 1150 Q235 steel 55

C45 steel 40 7-8 Automatic/manual Gear type (steel)

Feature

Thick panel, worm drive, high strength, no rebound, reasonable design, easy to operation.

High efficiency, angle adjusting easily, simple structure, safe, compact structure.

Lightweight and flexible, use gradient, stable performance, double foot switch, high safety of automatic bending.

Full automatic steel bar bender can be used automatically or manually according to workers' usage habit.

This advanced machine has fast bending speed which can save time.

Adopt the totally enclosed type case so that distortion can be avoided which happened under the condition of heavy load.

Totally enclosed type case ensures the gear and bearing operate in sufficient lubrication and dustless condition.

All components are produced according to standard strictly, have long service life.

Holes should be processed well to ensure the installation accuracy of gear.

Gear undergoes the high-frequency quenching process which has the characteristics of high carrying capacity, stable performance and reliable.

Adopt the all rolling bearing structure featured with light rotating which additional fuel is not needed for spindle sliding bush but ordinary bending machine need.

The machine adopts braking motor, insert pin type location disc to ensure the accuracy of bending radian and the convenience of adjustment.

All rollers are made of high quality alloy steel which have high hardness and good wear ability, also improve the rollers life time.

The stop gauges are installed on four different corners to realize the requirement of putting steel bar from various directions.

There are steel bar forming device near the corner which ensure the bending quality.

Controlling table adopts rotary type which makes the transportation and operation full of humanization.

Wheels are convenient to move.

Application

Steel bending machine is used to bend round steel bar or deformed steel bar into various shapes. It is suitable for road, bridge, tunnel and big construction project.
