Concrete Mixing Machine

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Concrete Mixing Machine Mix Mixture in High Speed

Concrete mixing machine consists of support, mixing drum, mixing device and motor. Its working principle is that raw material is upgraded from bottom to top through high rotating speed screw, then scattered in the shape of umbrella to bottom. In this way, raw material is rolled and mixed in mixing drum, can be mixed well in a short time. Concrete mixer can mix the mixture in clockwise, discharge mixture in counterclockwise. The machine has stable operation, good mixing quality, high efficiency, low noise and low consumption. It is also easy to repair, maintain and move. Mortar machine can mix plastic concrete, dry hard concrete, fluidity concrete, light aggregate and mortar for road, bridge, and other construction engineering.

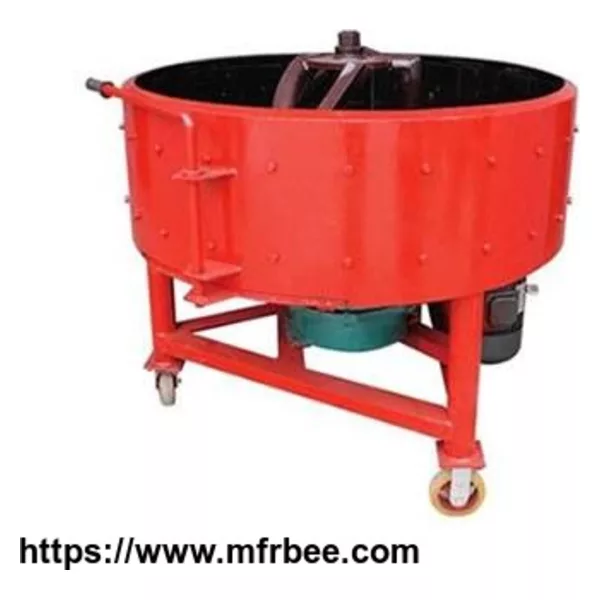

A red concrete mixer has round mixing drum, three legs and a yellow motor.

CMM-1: Concrete mixer has low noise and low consumption.A red concrete mixer has round mixing drum, a blue motor and three legs with small wheels.

CMM-2: Wheels on concrete mixer is easy to move the machine.A red mortar machine has round mixing drum, two legs and two big wheels.

CMM-3: Mortar machine has high mixing speed, and can mix mixture evenly.Many red concrete mixing machine are placed on ground neatly.

CMM-4: Concrete mixing machine can be used in road, bridge and other construction engineering.

Specification

Color: red, orange, green, blue or as your requirement.

Specification of Concrete Mixing Machine

Model Discharge capacity (L) Feed capacity (L) Productivity (m3/h) Rotating speed of drum (r/min) Max diameter of mixture (mm) Mixer motor power (kW) Size (mm) Weight (kg)

CMMS-1 230 350 1.2 35 3 1100 × 1200 200

CMMS-2 250 19 5.5 1000 × 1100

CMMS-3 250 560 36 40 5.5 1300 × 1200

CMMS-4 320 500 1.6 32 3 1800 × 1600 × 1400 350

CMMS-5 350 560 10-14 14 60 5.5 2766 × 2140 × 3000 1950

CMMS-6 350 21 5.5 1200 × 1400

CMMS-7 350 8-12 29 5.5 1200 × 1300 280

CMMS-8 350 400 35 50 5.5 1150 × 1000 200

CMMS-9 350 36 5.5 240

CMMS-10 400 20 5.5

CMMS-11 500 800 18-20 13 60-80 11 5226 × 2200 × 5460 3100

CMMS-12 500 800 20-25 17 60 18.5 2960 × 2600 × 4400 3970

CMMS-13 500 35 7.5 1500 × 1400

CMMS-14 500 40 7.5 1450 × 1200

CMMS-15 700 40 11 1500 × 1300

CMMS-16 750 1200 30-35 12 60-80 15 6116 × 2056 × 6060 4200

CMMS-17 750 20 7.5

CMMS-18 750 40 7.5/11 1500 × 1400

CMMS-19 1000 45 15 1600 × 1400

Feature

Mix the mixture in clockwise, discharge mixture in counterclockwise.

Low noise, low consumption, high efficiency, high discharge speed.

Light weight, small size, compact structure, stable operation, easy to use, easy to repair and maintain, easy to move, good mixing quality.

Long service life for scaleboard and blade, save time and labor, mixing even.

Application

Concrete mixing machine can mix plastic concrete, dry hard concrete, fluidity concrete, light aggregate and mortar. It can be used in road, bridge, construction site, highway, power station, concrete component factory, dam construction, industrial and civil construction engineering, prefabricated component factory, brick factory. It also can be used in ceramics and refractory materials manufacturing.
