Plate Compactor

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Plate Compactor Used to Compact Sand or Gravel Hard

Plate compactor, also named as vibratory plate compactor, includes electric plate compactor and gasoline plate compactor. It also can be divided into single direction plate compactor and reversible plate compactor. Gasoline or diesel engine is in the condition of air-cooled, single cylinder, 4-stroke. It can compact the ground hard. It is a perfect machine used to compact the sand, asphalt, gravel, granular soil, grit. It is usually used in sloping surface, patio, path, driveway, pavement, trench, foundation, etc. It has low amplitude, high frequency, highly maneuverable, is easy to operate. The base plate is made of ductile iron or steel to provide better durability. It is popular in building construction.

The gasoline plate compactor has yellow body, black water tank, base plate, handle and white oil tank.

PC-1: Gasoline plate compactor has high efficiency and low amplitude.The gasoline plate compactor has orange base plate, sealed belt cover and black handle, water tank, oil tank.

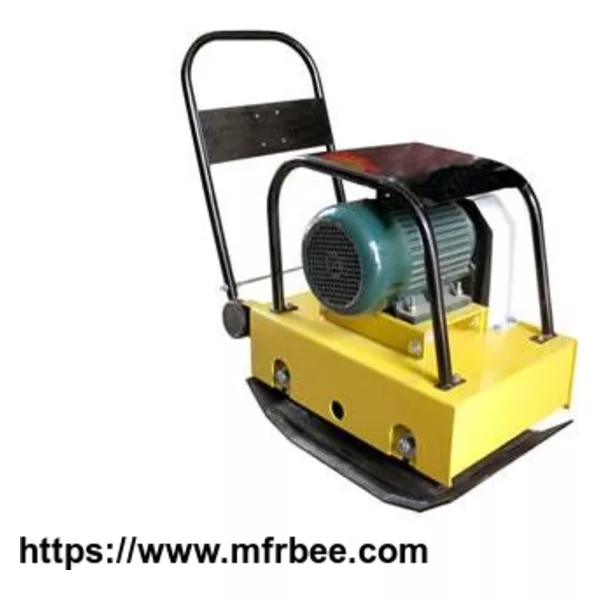

PC-2: Anti-vibration handle on gasoline plate compactor can reduce vibration.The electric plate compactor has black handle, base plate, protective frame, green motor and yellow body.

PC-3: Electric plate compactor can be used to compact gravel and grit.A plate compactor in the ditch and behind it is a pile of sand.

PC-4: Plate compactor is used to compact soil and sand.

Specification

Two types: single direction plate compactor and reversible plate compactor.

Engine

Air-cooled, single cylinder, 4-stroke gasoline or diesel engine.

Electric engine.

Specification of Plate Compactor

Model Frequency Working speed (m/min) Vibrating force Engine Net weight (kg) Plate size (mm) Packing size (mm)

PCS-1 48 HZ 6-16 16 KN

PCS-2 62 HZ 15 30 KN 4 kW 178 400 × 300

PCS-3 70 HZ 20-30 15KN 6.5 HP 92

PCS-4 97 HZ 20 15 KN 3.7 kW 83 590 × 500 1020 × 500 × 885

PCS-5 100 HZ 0-20 20KN 103

PCS-6 3750 vpm 0-21 34KN 6.3 kW

8.5 HP 890 × 500 1250 × 480 × 950

PCS-7 3750 vpm 0-21 34KN 6.8 kW

9 HP 890 × 500 1250 × 480 × 950

PCS-8 4400 vpm 36.6 8.5KN 4.8 HP 92 406 × 508

PCS-9 5500 vpm 0-24 6.5 HP 420 × 560 880 × 390 × 900

PCS-10 5600 vpm 24 10.5 KN 3.2 kW

4.2 HP 61 500 × 360 1080 × 400 × 800

PCS-11 5600 vpm 24 10.5 KN 5 HP 64 510 × 360 1100 × 410 × 790

PCS-12 5600 vpm 24 10.5 KN 4.0 kW

5.5 HP 62 500 × 360 1080 × 400 × 800

PCS-13 5600 vpm 15 12 KN 6.5 HP 70

PCS-14 5600 vpm 15-20 13.5 KN 5.0 HP 75 570 × 430 660 × 520 × 880

PCS-15 5600 vpm 15-20 13.5 KN 5.0 HP 80 570 × 430 660 × 520 × 880

PCS-16 5600 vpm 15 15 KN 6.5 HP 90 1016 × 483 × 940

PCS-17 5600 vpm 25 2275lbs 71 350 × 540

PCS-18 5600 vpm 3080lbs 5.5 HP 80 450 × 570 915 × 450 × 1000

PCS-19 5800 vpm 20-25 13 KN 79 530 × 460 620 × 490 × 680

PCS-20 5800 vpm 20-25 15 KN 89 600 × 470 690 × 530 × 700

PCS-21 5800 vpm 20-25 15.5 KN 5.0 HP 88 600 × 480 720 × 580 × 880

PCS-22 5800 vpm 20-25 15.5 KN 5.0 HP 90 600 × 480 720 × 580 × 880

PCS-23 5800 vpm 20-25 20 KN 660 × 510 720 × 560 × 710

PCS-24 5800 vpm 20-25 21 KN 5.0 HP 110 600 × 480 720 × 580 × 880

PCS-25 5800 vpm 20-25 21 KN 5.0 HP 115 600 × 480 720 × 580 × 880

PCS-26 6500 vpm 4000lbs 4.8 kW

6.5 HP 86 620 × 450 650 × 490 × 701

Feature

Low amplitude, low maintenance, high frequency, highly maneuverable, easy operation.

Ideal for small jobs and narrow areas.

Ductile iron or steel base plate provides better durability.

Open plate provides self cleaning.

Easy-remove water tank with built-in valve.

Radius bass plate for easy access to corners.

Centrally located lifting bar and built-in wheel for easy transportation.

Sealed belt cover to prevent sand and soil in.

The water tank and sprinkle system increase the machine's efficiency.

Tough powder coat finish to resistant to wear and tear during compaction.

The machine has anti-vibration handle to reduce vibration by 50% for operator.

Solid, high-strength base plate with curved edges for excellent performance and smooth turns on hot asphalt.

Heavy-duty shock mounts reduce vibration to the upper engine.

Foldable handle for easy transportation and stock.

Throttle control is available as optional.

Reversible plate compactor is easy to reach control.

Start the compactor on earth, sand or gravel, not on concrete.

If the fill material is too wet, then the compactor gets bogged.

The fill material should be raked to flat as the final levels are reached.

Application

Plate compactor is mainly used to compact sand, asphalt, gravel, granular soil, grit in narrow confined areas. These areas include sloping surface, patio, path, driveway, pavement, trench, foundation, wall, abutment, curb, gutter, drainage ditch, sewer work, building construction, traffic, municipal work, culvert, water conservancy project, etc.
