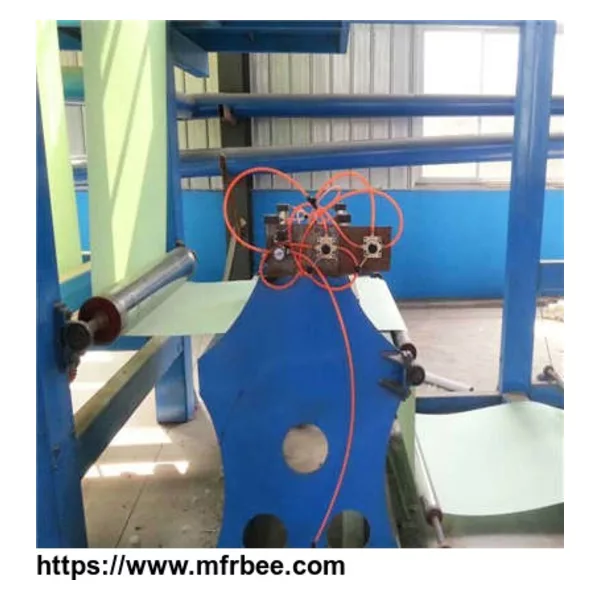

1.5-5mm Sbs Bitumen Waterproof Material Manufacturing Equipment
Product sourcing details
Supplier: Xinle Hongtai Waterproof Machinery Factory
Purchasing information
- Minimum order
- 1
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.
Specifications
Modified bitumen waterproofing membrane is widely used in industrial and civil buildings, such as roof, basement, toilet, bridge, park, swimming pool, tunnel for waterproof and moisturepr of.
Bitumen is a hydrocarbon and is created naturally from crude oil. It is a useful carbon store and does not generate greenhouse gases. The membrane is therefore a sustainable way of storing carbon on
the Earth\'s surface.
Working principle
The whole working principle can be divided into 3 steps.
1.To mix the bitumen,rubber powder , talcum powder , enginee oil and some other raw materials via mixing tanks(the mixing tank should be kept warm by conduction oil).The finished mixtures can be called bituminous mixtures .
2.The bituminous mixtures will be delivered into coating pools.Then the base material(reinforcement ) will be coated with the bituminous mixtures.At last ,the coated reinforcement will be covered by PE film or sand or other materials.At that time ,the bitumen membrane preliminary forming.
3.The finished products will be cooled by water and air,then be rolled by auto winder.
Working principle
The whole working principle can be divided into 3 steps.
1.To mix the bitumen,rubber powder , talcum powder , enginee oil and some other raw materials via mixing tanks(the mixing tank should be kept warm by conduction oil).The finished mixtures can be called bituminous mixtures .
2.The bituminous mixtures will be delivered into coating pools.Then the base material(reinforcement ) will be coated with the bituminous mixtures.At last ,the coated reinforcement will be covered by PE film or sand or other materials.At that time ,the bitumen membrane preliminary forming.
3.The finished products will be cooled by water and air,then be rolled by auto winder.
| Capacity(M²/year)(Reference) | 2 million | 3 million | 5 million | 8 million | 10 million |
| Speed(M/min)(Reference) | 0-12 | 0-18 | 0-25 | 0-30 | 0-35 |
| Linear velocity | 5-50M/min (adjustable) | ||||
| Power source | 220KW,380V,50HZ,3P | ||||
| Labor Required(Reference) | 5-7 | 6-9 | 9-11 | 9-11 | 9-11 |
| Water Consumption | 0.5T/day,recycling | ||||
| Main Workshop (L*W*H) /m | 60x (12-15)x(6-8) | 60x (12-15)x(6-8) | 60x (12-15)x(6-8) | 60x (12-15)x(6-8) | 90x (12-15)x(6-8) |
| Automation degree | Semi-automatic and Full-automatic | ||||
| Fuel | Coal, natural gas, diesel oil, etc | ||||
| Length/Roll | 10m or as customized | ||||
| Width/Roll | 1m-1.5m | ||||
| Thickness/Roll | 1.5 mm-5mm | ||||
| Reinforcement | Polyester, Fiberglass mat, Compound Mat | ||||
| Surface material | PE film, Aluminum foil,Sand, Schist flake,etc | ||||
| Modified Materials | SBS/APP | ||||
| Reinforcement(Base material) | Polyester felt:140-300g/M², Fiberglass felt:150-250 g/M², Composite reinforcement(5×5-8×8) | ||||
| Diesel consumption | 60Kg/h, Thermal efficiency≥73%, Oil burning boiler which is of 500,000K to heat conduction oil. | ||||
| Compressed air | 0.7Mpa,0.6m³/min | ||||
| Air compressor motor | 15KW |
