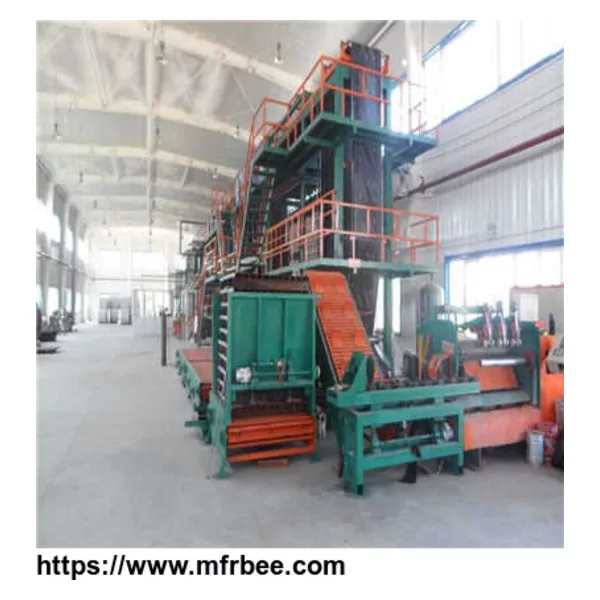

China OEM Sbsapp Modified Bitumen Waterproof Membrane Production Line
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
The whole parts of the modified bitumen waterproof membrane line
1.Reinforcement unwinding device
2.Reinforcement splicting device
3.Reinforcement storing and drying device
4.Central aligner
5.Recoating and tension control device
6.Asphalt coating device
7.Sand-scattering device
8.Filming and thickness-measuring device
9.Sand-pressing with uspending cooling device
10.Cooling and embossing device
11.Reinforcement storing and drying device
12.Drawing-spring device
13.Auto winding machine
14.Mixing-weighing system
15.Storage tank
16.Powder-conveying system
17.Fume treatment system
18.Heating with boiler system
1.Reinforcement unwinding device
2.Reinforcement splicting device
3.Reinforcement storing and drying device
4.Central aligner
5.Recoating and tension control device
6.Asphalt coating device
7.Sand-scattering device
8.Filming and thickness-measuring device
9.Sand-pressing with uspending cooling device
10.Cooling and embossing device
11.Reinforcement storing and drying device
12.Drawing-spring device
13.Auto winding machine
14.Mixing-weighing system
15.Storage tank
16.Powder-conveying system
17.Fume treatment system
18.Heating with boiler system
| Capacity(M²/year)(Reference) | 2 million | 3 million | 5 million | 8 million | 10 million |
| Speed(M/min)(Reference) | 0-12 | 0-18 | 0-25 | 0-30 | 0-35 |
| Linear velocity | 5-50M/min (adjustable) | ||||
| Power source | 220KW,380V,50HZ,3P | ||||
| Labor Required(Reference) | 5-7 | 6-9 | 9-11 | 9-11 | 9-11 |
| Water Consumption | 0.5T/day,recycling | ||||
|
Main Workshop (L*W*H) /m |
60x (12-15)x(6-8) | 60x (12-15)x(6-8) | 60x (12-15)x(6-8) | 60x (12-15)x(6-8) | 90x (12-15)x(6-8) |
| Automation degree | Semi-automatic and Full-automatic | ||||
| Fuel | Coal, natural gas, diesel oil, etc | ||||
| Length/Roll | 10m or as customized | ||||
| Width/Roll | 1m-1.5m | ||||
| Thickness/Roll | 1.5 mm-5mm | ||||
| Reinforcement | Polyester, Fiberglass mat, Compound Mat | ||||
| Surface material | PE film, Aluminum foil,Sand, Schist flake,etc | ||||
| Modified Materials | SBS/APP | ||||
| Reinforcement(Base material) |
Polyester felt:140-300g/M², Fiberglass felt:150-250 g/M², Composite reinforcement(5×5-8×8) |
||||
| Diesel consumption | 60Kg/h, Thermal efficiency≥73%, Oil burning boiler which is of 500,000K to heat conduction oil. | ||||
| Compressed air | 0.7Mpa,0.6m³/min | ||||
| Air compressor motor | 15KW |
