Description

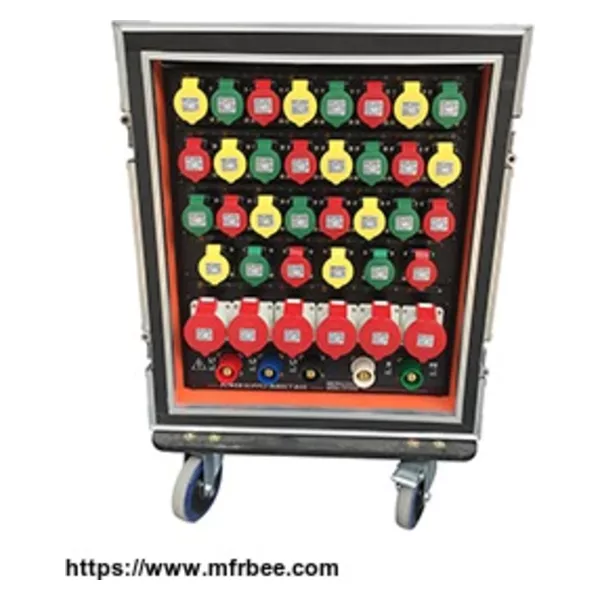

KoinStage customized Three-phase five wire48 channelsXXX.
Equipment housed in a plywood flight case enclosure,with recessed Socket and
Switchgear panels for mechanical protection.48 channels has separately by30 pcs16A 3pin socket and 6 pcs 32A 5pin socket, it can protect the power case very good.400A connector, there are
white/green/red/blue/black color.Equipment has a main switch and separate switch,protect overload and short circuit.
This type ofXXX Applicable to event lighting Audio/Video and Led wall applications.

Specification

Flight Case	13U,14inch wheel,fireproofing,quakeproof,LED lighting at the top inside
Input	400A camlock,3 phase 5wire(5 colors),AC380Vinput AC220Voutput
Output	48 channels 16A 3pin socket and 32A 5pin socketwith indicator light
Breaker	main breaker, air switch (Delixi)
Meter	ampere and voltage meter
Wire	copper busbar main wire, inflaming retarding,terminal fixed with Screw glue
Plug	with 400A camlock plug, 16A 3pin plugs,32A 5pin plugs
Working Temperature	0℃-45℃
relative humidity	+40% - +80%
Atmospheric pressure	0.8-1.6
Working environment	well-ventilated, non smoke dust
Weight	85Kg
